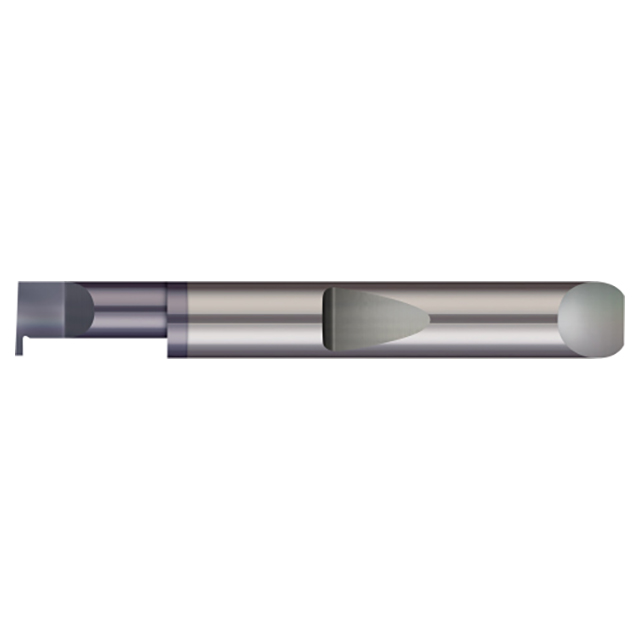

Micro 100 QRR-118-12X | 0.118" Width x 0.495" Minimum Bore Diameter x 0.750" Maximum Bore Depth x 1/2" Shank x 2-1/2" OAL AlTiN Coated Carbide Retaining Ring Quick Change Grooving Tool

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.4950"
Hand Direction	Right Hand
Finish/Coating	AlTiN
Max Bore Depth (Inch)	3/4"
Max Bore Depth (Decimal Inch)	0.750"
Projection (Decimal Inch)	0.1500"
Shank Diameter (Inch)	1/2"
Shank Diameter (Decimal Inch)	0.5000"
Centerline Offset (Decimal Inch)	0.2450"
Length from Holder (Decimal Inch)	1.040"
Neck Diameter (Decimal Inch)	0.3450"
Overall Length (Inch)	2-1/2"
Overall Length (Decimal Inch)	2.50"
Tooth Width (Decimal Inch)	0.1180"
