Product Specifications

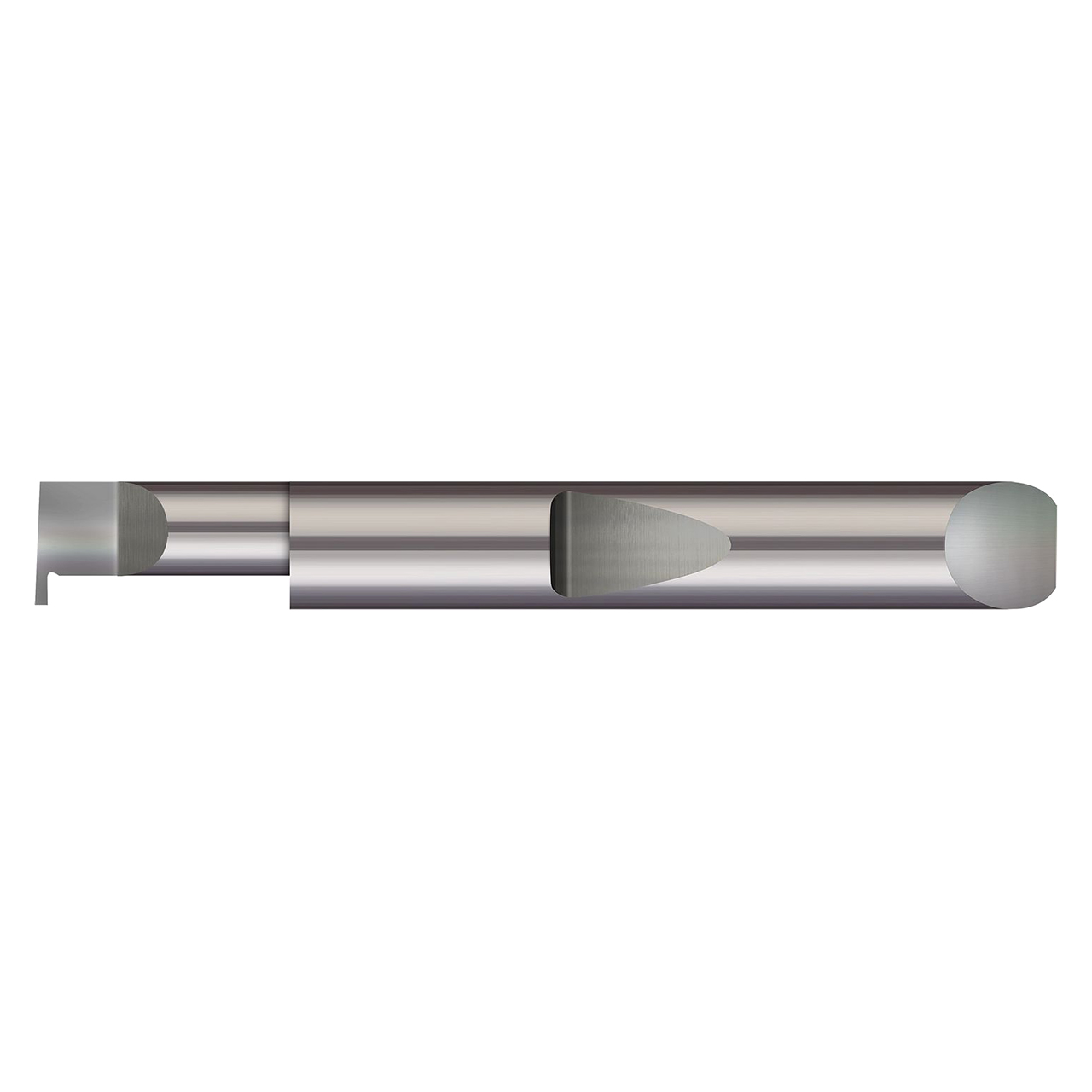

| Manufacturer Part Number | QRR-2122 |
| Minimum Bore Diameter (Decimal Inch) | 0.2670" |
| Maximum Bore Diameter (Decimal Inch) | 0.250" |
| Maximum Bore Diameter (Inch) | 1/4" |
| Projection (Decimal Inch) | 0.0500" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Projection (Decimal Inch) | 1/4" |
| Shank Diameter(mm) | 0.1200" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 0.853" |
| Neck Diameter (Decimal Inch) | 0.1950" |
| Overall Length (Decimal Inch) | 2.00" |
| Overall Length (Inch) | 2" |
| Tooth Width (Decimal Inch) | 0.0400" |
| Coating | Uncoated |
| Product Type | Grooving Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Projection (Inch):
3/64"
Projection (Decimal Inch):
0.0500"
Projection (mm):
1.27mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Finish/Coating:
Uncoated
