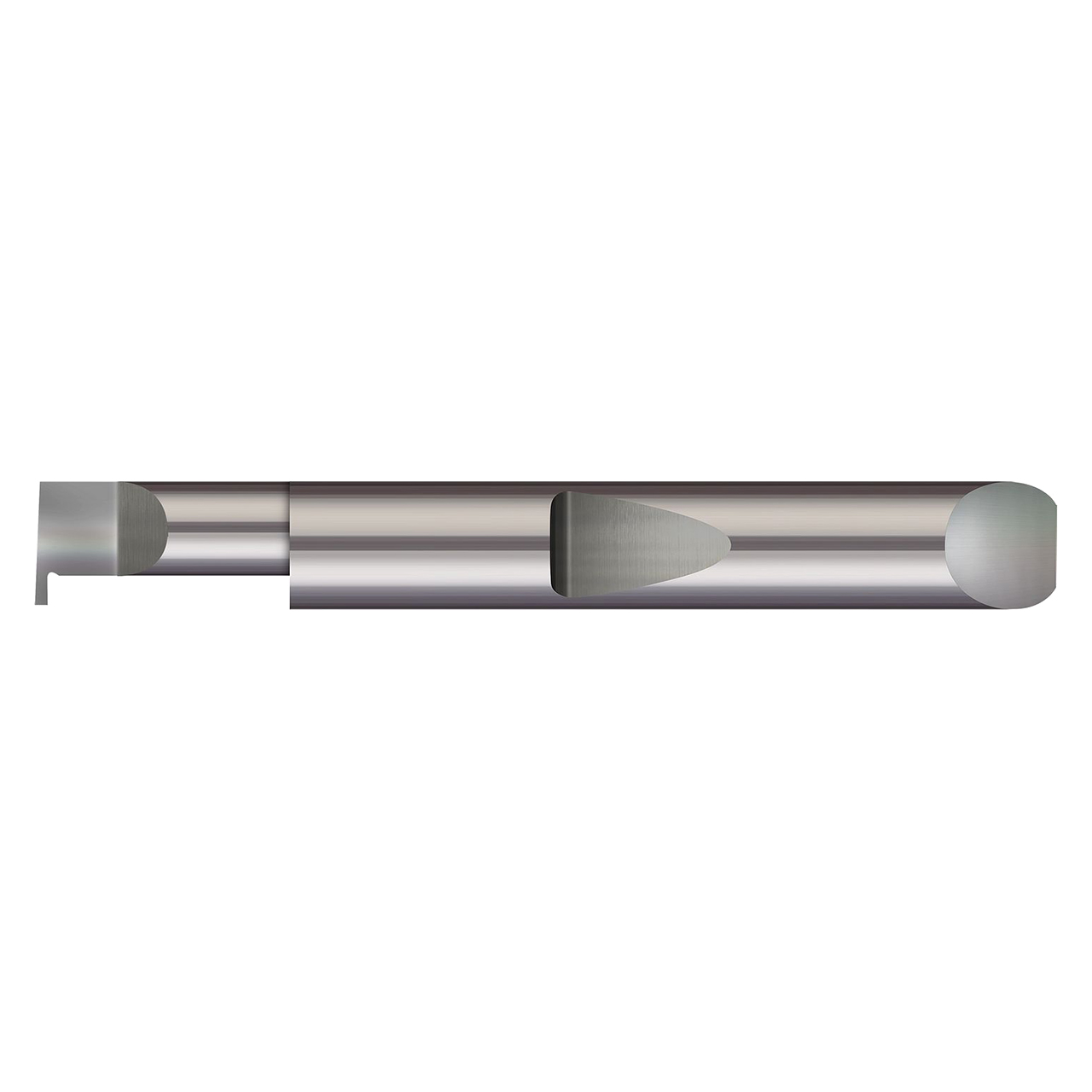

Micro 100 QRR-6757 | 0.375" Maximum Bore Depth x 0.1875" Shank x 1.500" OAL x 0.0300" Width Right hand Uncoated Grooving Tool

$36.80
Brand:
Micro 100
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Projection (Inch):
3/64"
Projection (Decimal Inch):
0.0500"
Projection (mm):
1.27mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Finish/Coating:
Uncoated
SKU:
25294763
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Micro 100 QRR-6757 | 0.375" Maximum Bore Depth x 0.1875" Shank x 1.500" OAL x 0.0300" Width Right hand Uncoated Grooving Tool

Product Specifications
Manufacturer Part NumberQRR-6757
Minimum Bore Diameter (Decimal Inch)0.1540"
Maximum Bore Diameter (Decimal Inch)0.375"
Maximum Bore Diameter (Inch)3/8"
Projection (Decimal Inch)0.0500"
Shank Diameter (Decimal Inch)0.1875"
Projection (Decimal Inch)3/16"
Shank Diameter(mm)0.0463"
Hand DirectionRight Hand
Length from Holder (Decimal Inch)0.590"
Neck Diameter (Decimal Inch)0.0900"
Overall Length (Decimal Inch)1.50"
Overall Length (Inch)1-1/2"
Tooth Width (Decimal Inch)0.0300"
CoatingUncoated
Product TypeGrooving Tool

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Micro 100
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Projection (Inch):
3/64"
Projection (Decimal Inch):
0.0500"
Projection (mm):
1.27mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Finish/Coating:
Uncoated
