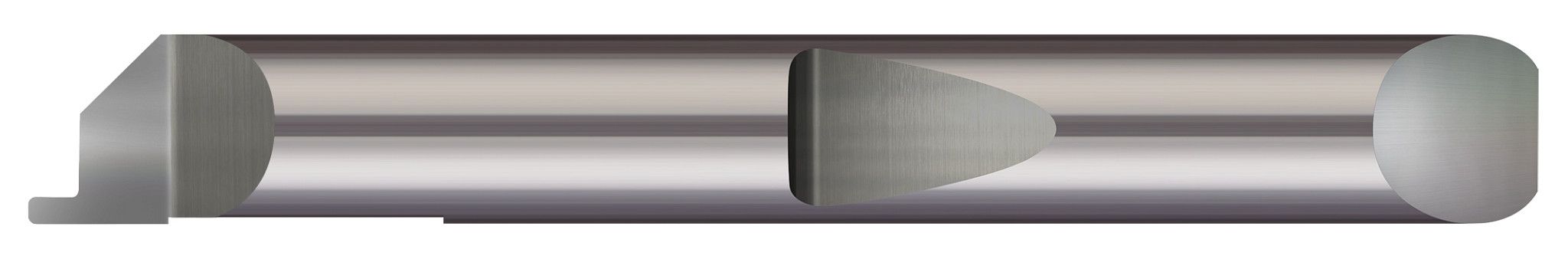

Micro 100 QRRC6-087-1000-370 | 0.3700" Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0870" Tooth Width x 0.1000" Projection x 0.3750" (3/8) Shank DIA x 2.50" (2-1/2) Overall Length x 0.0060" Radius - Carbide Retaining Ring Grooving Right Hand. From the Micro 100 Quick Change - Grooving Tools - Retaining Ring - Corner Radius - Right Hand product family.

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.3920"
Head Width (Decimal Inch):
0.3700"
Finish/Coating:
Uncoated
Maximum Bore Depth (Inch):
1"
Maximum Bore Depth (Decimal Inch):
1.0000"
Projection (Decimal Inch):
0.1000"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Radius (Decimal Inch):
0.0060"
Neck Diameter (Decimal Inch):
0.2700"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
interval quantity:
1
