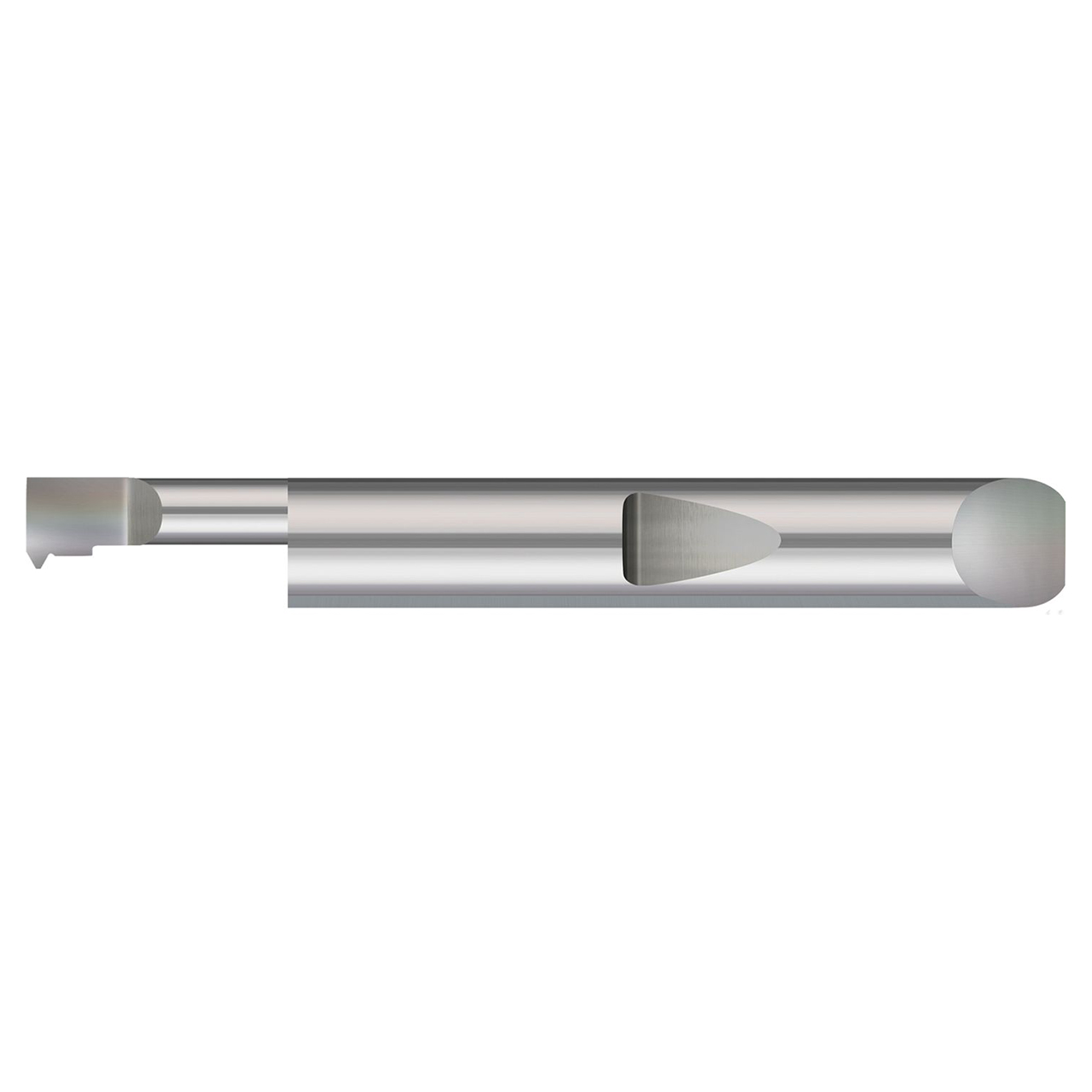

Micro 100 QTMT-120175-31 | M12x1.75 Thread 9.500mm Minimum Bore Diameter x 31.00mm Maximum Bore Depth x 0.947mm Projection Uncoated Right Hand Quick Change Threading Tool

$73.65
SKU:
25237021
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

These quick change metric topping single point threading tools are designed for threading 60° metric pitches in a right hand topping application, and work to generate a controlled thread height with a reduction in burr formation.

Features:
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split face geometry provides optimal edge strength
  • Coolant fed enabled shank design
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberQTMT-120175-31
Minimum Bore Diameter (mm)9.500mm
Maximum Bore Depth (mm)31.00mm
Projection (mm)0.947mm
Shank Diameter (Inch)0.3750"
Centerline Offset (mm)4.240mm
Offset (mm)0.804mm
Angle per Side (Degree)30 Degree
Included Angle (Degree)60 Degree
Length from Holder (mm)1.35mm
Overall Length (Inch)2.50"
Neck Diameter (mm)7.880mm
Thread SizeM12x1.75
MetricY
Hand DirectionRight Hand
CoatingUncoated
