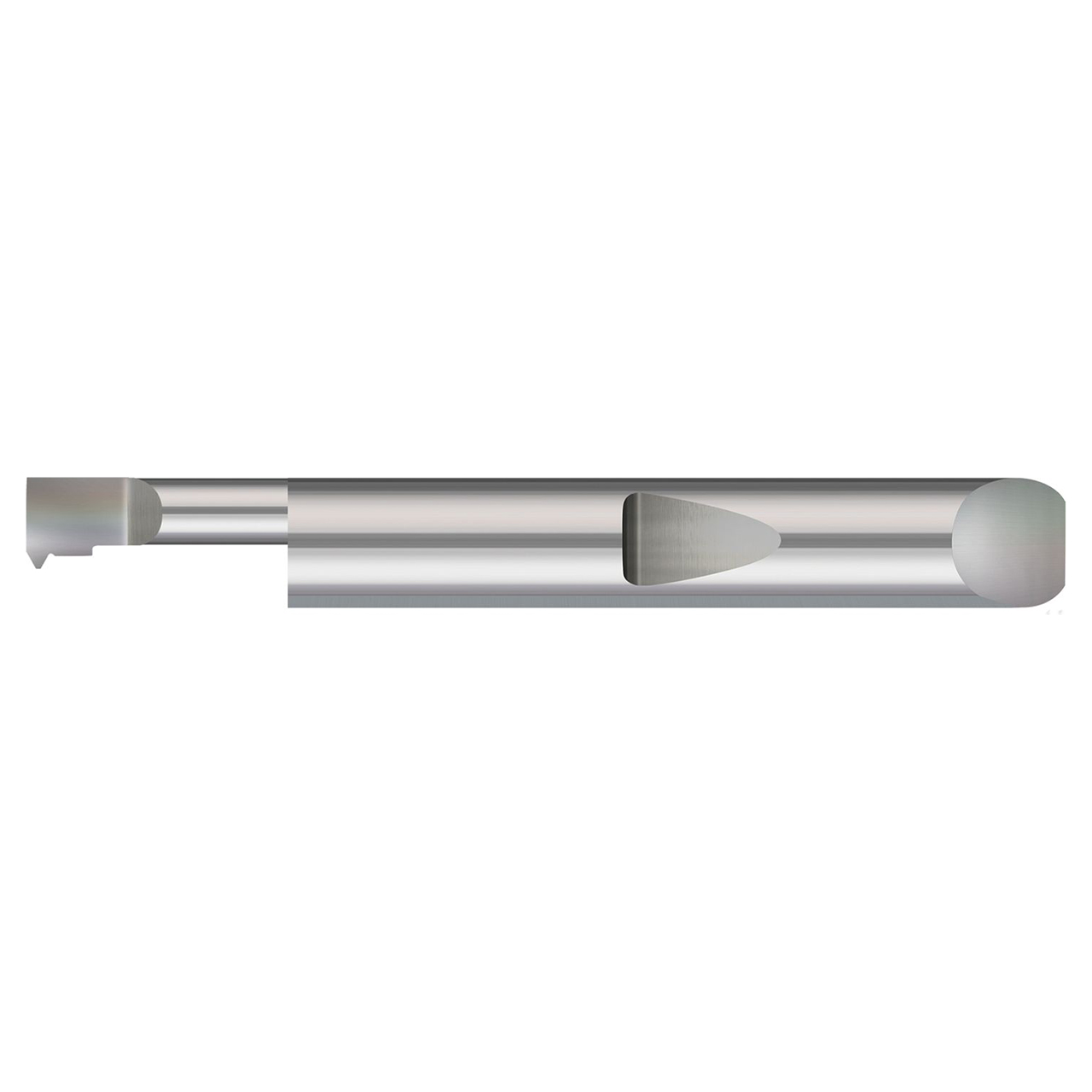

Micro 100 QTT-001024-025 | 10-24 Thread 0.1360" Minimum Bore Diameter x 0.250" (1/4) Maximum Bore Depth x 0.0226" Projection Uncoated Right Hand Quick Change Threading Tool

$47.00
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.1360"
Head Width (Decimal Inch):
0.1200"
Finish/Coating:
Uncoated
Maximum Bore Depth (Inch):
1/4"
Maximum Bore Depth (Decimal Inch):
0.2500"
Projection (Decimal Inch):
0.0226"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Included Angle:
60 Degree
Neck Diameter (Decimal Inch):
0.0909"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
SKU:
25237051
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Our quick change single point Un threading tools are designed for threading 60° Un pitches in a right hand topping application, and allow for generating a controlled thread height with a reduction in burr formation.

Features:
  • Topping design generates a controlled thread height with a reduction in burr formation
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split face geometry provides optimal edge strength
  • Coolant fed enabled shank design
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberQTT-001024-025
Minimum Bore Diameter (Inch)0.1360"
Maximum Bore Depth (Inch)0.250" (1/4)
Projection (Inch)0.0226"
Shank Diameter (Inch)0.1875" (3/16)
Centerline Offset (Inch)0.0263"
Offset (Inch)0.021"
Angle per Side (Degree)30 Degree
Included Angle (Degree)60 Degree
Length from Holder (Inch)0.590"
Overall Length (Inch)1.50" (1-1/2)
Neck Diameter (Inch)0.0909"
Thread Size10-24
Hand DirectionRight Hand
CoatingUncoated
