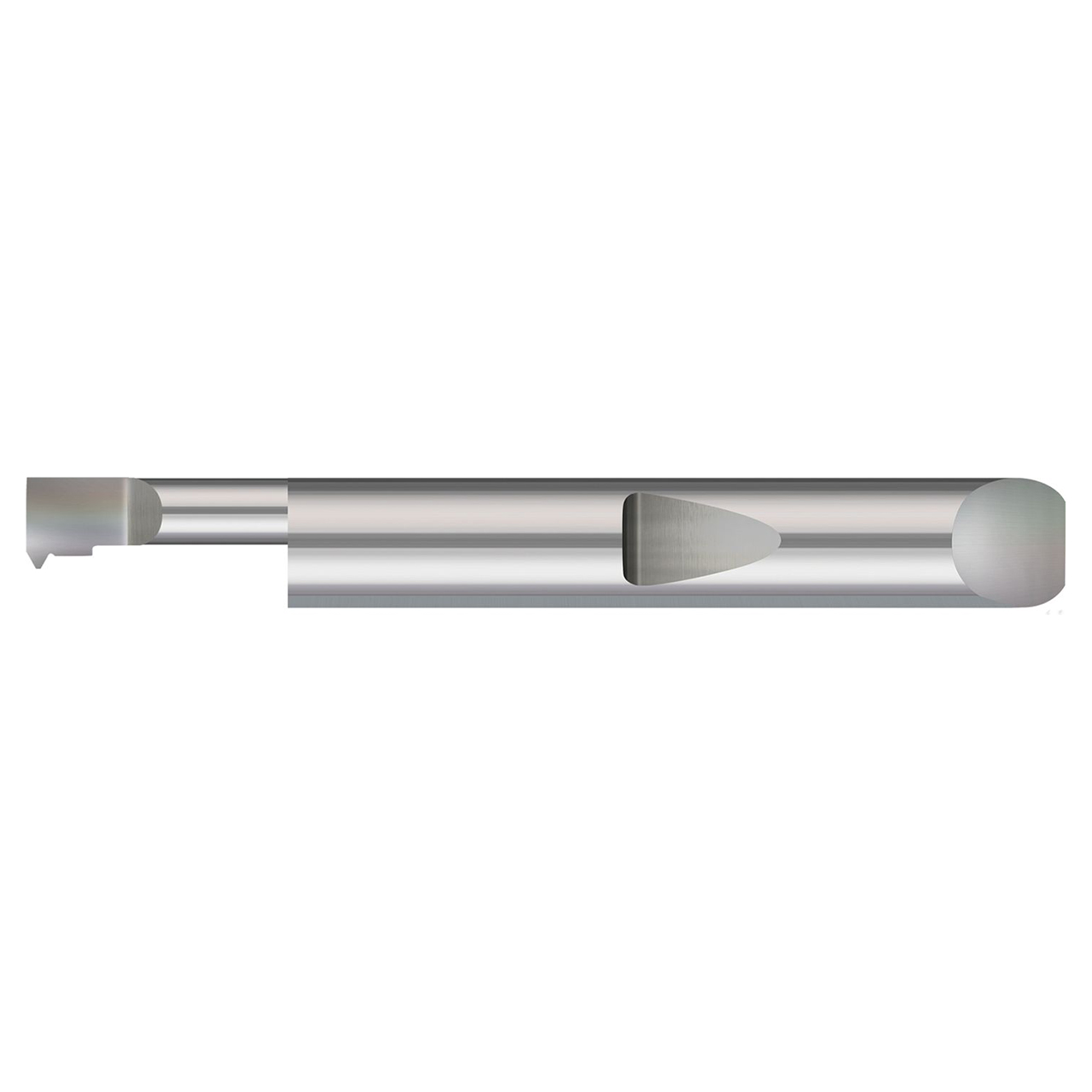

Micro 100 QTT-038024-075X | 3/8"-24 Thread 0.322" Minimum Bore Diameter x 0.750" (3/4) Maximum Bore Depth x 0.023" Projection AlTiN Coated Right Hand Quick Change Threading Tool

Our quick change single point Un threading tools are designed for threading 60° Un pitches in a right hand topping application, and allow for generating a controlled thread height with a reduction in burr formation.

• Topping design generates a controlled thread height with a reduction in burr formation
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split face geometry provides optimal edge strength
• Coolant fed enabled shank design
• Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid carbide
• CNC ground in the USA
