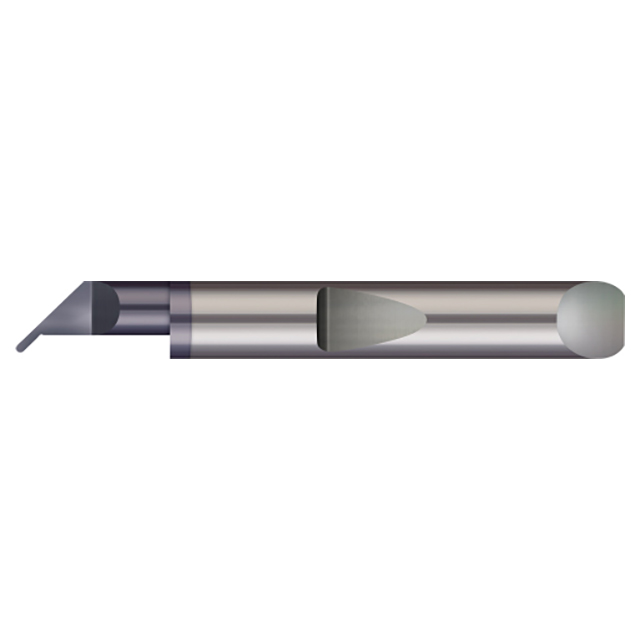

Micro 100 QUP-25025-6X | 0.025" Width x 0.240" Minimum Bore Diameter x 0.375" Maximum Bore Depth x 1/4" Shank x 2" OAL AlTiN Coated Carbide Full Radius Unercutting Quick Change Grooving Tool

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.2400"
Hand Direction	Right Hand
Finish/Coating	AlTiN
Max Bore Depth (Inch)	3/8"
Max Bore Depth (Decimal Inch)	0.375"
Projection (Decimal Inch)	0.0600"
Shank Diameter (Inch)	1/4"
Shank Diameter (Decimal Inch)	0.2500"
Centerline Offset (Decimal Inch)	0.1150"
Radius (Decimal Inch)	0.0125"
Angled Projection (Decimal Inch)	0.092"
Face Dimension (Inch)	1/8"
Face Dimension (Decimal Inch)	0.125"
Length from Holder (Decimal Inch)	0.853"
Neck Diameter (Decimal Inch)	0.1800"
Overall Length (Inch)	2"
Overall Length (Decimal Inch)	2.00"
Split Length (Inch)	1/4"
Split Length (Decimal Inch)	0.250"
Tooth Width (Decimal Inch)	0.0250"
