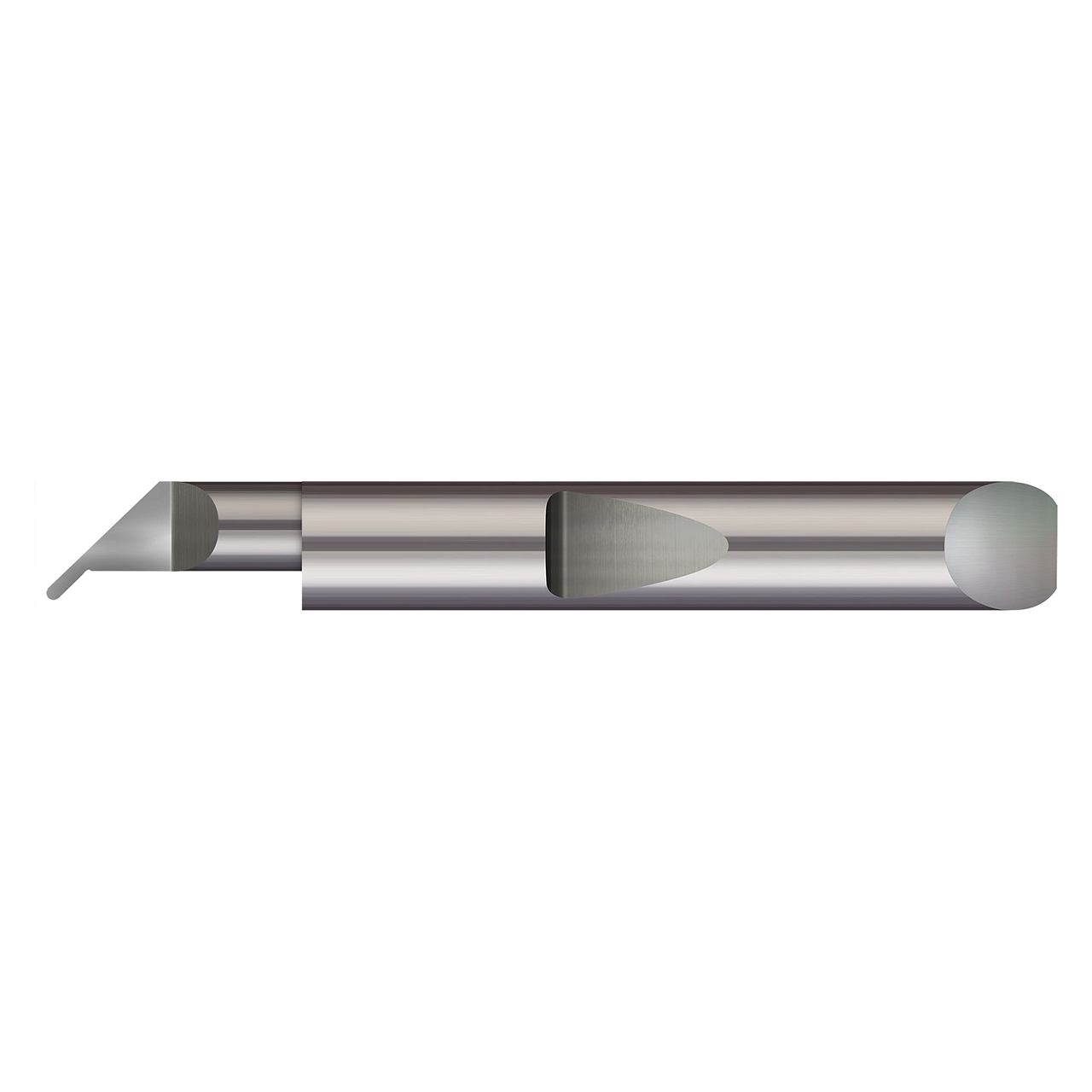

Micro 100 QUP-25039-16 | 1.000" Maximum Bore Depth x 0.2500" Shank x 2.500" OAL x 0.0390" Width Right hand Uncoated Grooving Tool

$49.60
Brand:
Micro 100
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Projection (Inch):
1/16"
Projection (Decimal Inch):
0.0600"
Projection (mm):
1.52mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Finish/Coating:
Uncoated
SKU:
25294787
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Micro 100 QUP-25039-16 | 1.000" Maximum Bore Depth x 0.2500" Shank x 2.500" OAL x 0.0390" Width Right hand Uncoated Grooving Tool

Product Specifications
Manufacturer Part NumberQUP-25039-16
Minimum Bore Diameter (Decimal Inch)0.2620"
Maximum Bore Diameter (Decimal Inch)1.000"
Maximum Bore Diameter (Inch)1"
Projection (Decimal Inch)0.0600"
Shank Diameter (Decimal Inch)0.2500"
Projection (Decimal Inch)1/4"
Shank Diameter(mm)0.1150"
Radius (Decimal Inch)0.0195"
Angled Projection (Inch)0.096"
Hand DirectionRight Hand
Length from Holder (Decimal Inch)1.353"
Neck Diameter (Decimal Inch)0.1800"
Overall Length (Decimal Inch)2.50"
Overall Length (Inch)2-1/2"
Tooth Width (Decimal Inch)0.0390"
CoatingUncoated
Product TypeGrooving Tool
