Product Specifications
Manufacturer Part Number | RR-030-250-140 |
Minimum Bore Diameter (Decimal Inch) | 0.154" |
Head Width (Decimal Inch) | 0.140" |
Head Width (Inch) | 9/64" |
Maximum Bore Depth (Inch) | 1/4" |
Maximum Bore Depth (Decimal Inch) | 0.250" |
Projection (Decimal Inch) | 0.030" |
Shank Diameter (Decimal Inch) | 0.187" |
Shank Diameter (Inch) | 3/16" |
Centerline Offset (Decimal Inch) | 0.046" |
Neck Diameter (Decimal Inch) | 0.140" |
Neck Diameter (Inch) | 9/64" |
Overall Length (Decimal Inch) | 2.000" |
Overall Length (Inch) | 2" |
Tooth Width (Decimal Inch) | 0.030" |
Cutting Direction | Right Hand |
Coating | Uncoated |

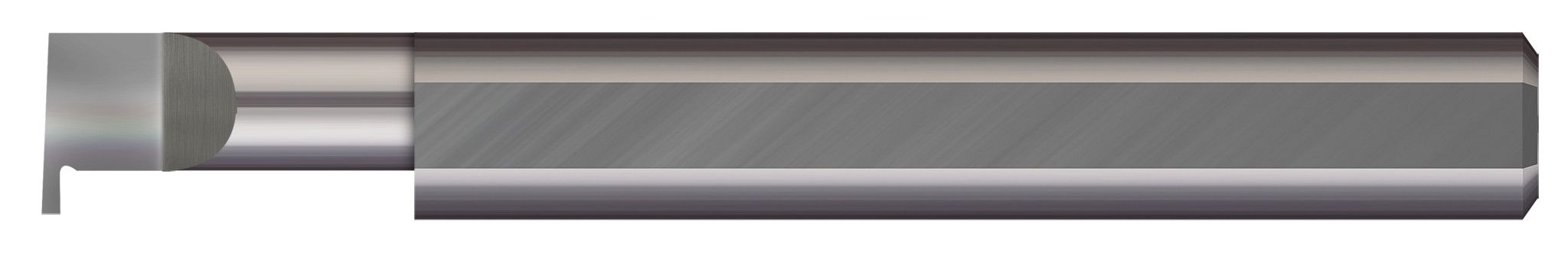

Product Type | Grooving Tool |

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.1540"
Head Width (Inch):
9/64"
Head Width (Decimal Inch):
0.1400"
Finish/Coating:
Uncoated
Maximum Bore Depth (Inch):
1/4"
Maximum Bore Depth (Decimal Inch):
0.2500"
Projection (Decimal Inch):
0.0300"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Neck Diameter (Decimal Inch):
0.1400"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
interval quantity:
1
