| Manufacturer Part Number | RR-087-1500-375 |
| Minimum Bore Diameter (Decimal Inch) | 0.397" |
| Head Width (Decimal Inch) | 0.375" |
| Head Width (Inch) | 3/8" |
| Maximum Bore Depth (Inch) | 1-1/2" |
| Maximum Bore Depth (Decimal Inch) | 1.500" |
| Projection (Decimal Inch) | 0.100" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (Inch) | 3/8" |
| Centerline Offset (Decimal Inch) | 0.187" |
| Centerline Offset (Inch) | 3/16" |
| Neck Diameter (Decimal Inch) | 0.375" |
| Neck Diameter (Inch) | 3/8" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Tooth Width (Decimal Inch) | 0.087" |
| Cutting Direction | Right Hand |
| Coating | Uncoated |

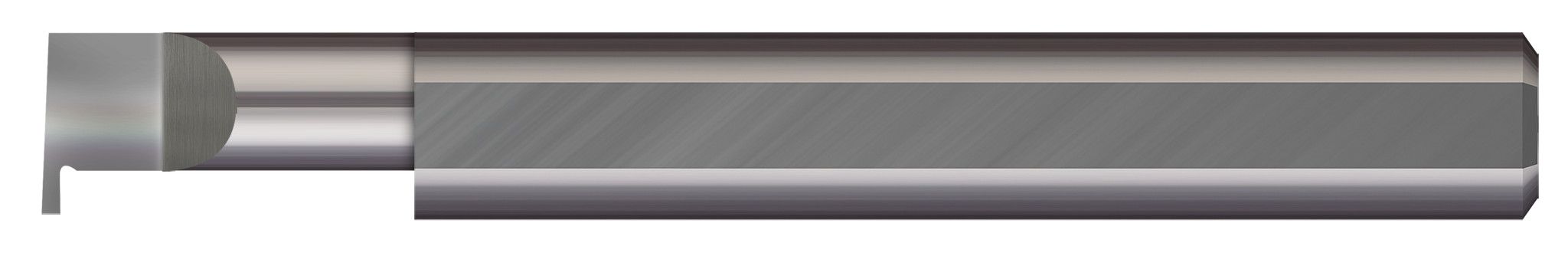

| Product Type | Grooving Tool |
