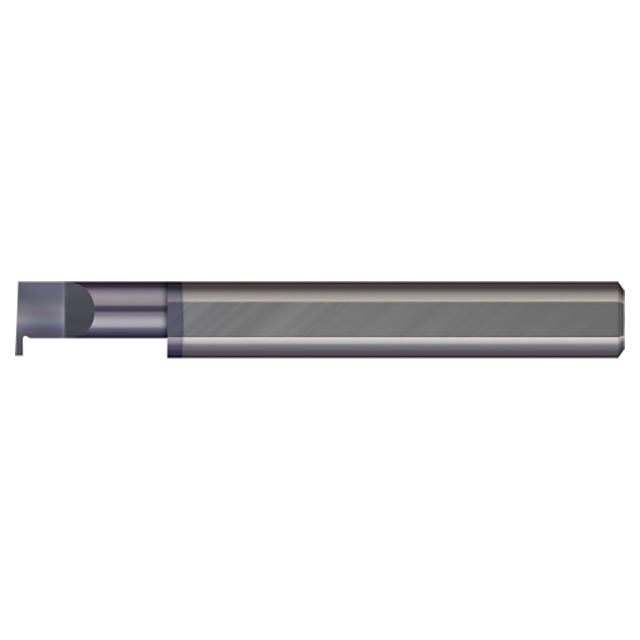

Micro 100 RR-093-20X | 0.093" Width x 1-1/4" Maximum Hole Depth x 1/2" Shank x 3" OAL AlTiN Coated Carbide Retaining Ring Grooving Tool

$97.60
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Groove Width (Decimal Inch):
0.093"
Projection (Decimal Inch):
0.1500"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.00"
Finish/Coating:
AlTiN
Maximum Hole Diameter (Inch):
1-1/4"
Maximum Hole Diameter (Decimal Inch):
1.250"
Ships:
From Partner Facility
SKU:
25130779
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping
Product Specifications
Min Bore Diameter (Inch) 1/2"
Min Bore Diameter (Decimal Inch) 0.5000"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 1-1/4"
Max Bore Depth (Decimal Inch) 1.250"
Projection (Decimal Inch) 0.1500"
Shank Diameter (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.5000"
Centerline Offset (Inch) 1/4"
Centerline Offset (Decimal Inch) 0.2500"
Face Dimension (Inch) 1/4"
Face Dimension (Decimal Inch) 0.250"
Neck Diameter (Decimal Inch) 0.3450"
Overall Length (Inch) 3"
Overall Length (Decimal Inch) 3.00"
Split Length (Decimal Inch) 0.275"
Tooth Width (Inch) 3/32"
Tooth Width (Decimal Inch) 0.0930"
