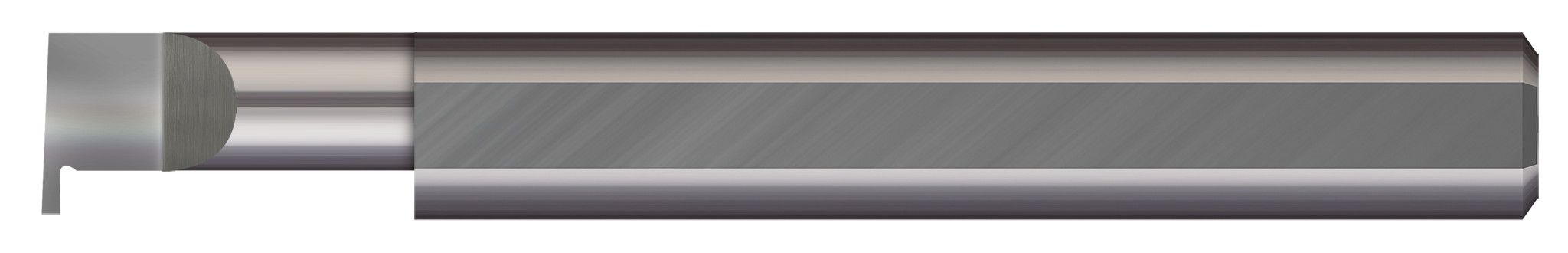

| Manufacturer Part Number | RR-125-750-375X |
| Minimum Bore Diameter (Decimal Inch) | 0.397" |
| Head Width (Decimal Inch) | 0.375" |
| Head Width (Inch) | 3/8" |
| Maximum Bore Depth (Inch) | 3/4" |
| Maximum Bore Depth (Decimal Inch) | 0.750" |
| Projection (Decimal Inch) | 0.100" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (Inch) | 3/8" |
| Centerline Offset (Decimal Inch) | 0.187" |
| Centerline Offset (Inch) | 3/16" |
| Neck Diameter (Decimal Inch) | 0.375" |
| Neck Diameter (Inch) | 3/8" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Tooth Width (Decimal Inch) | 0.125" |
| Tooth Width (Inch) | 1/8" |
| Cutting Direction | Right Hand |
| Coating | AlTiN |
| Product Type | Grooving Tool |
