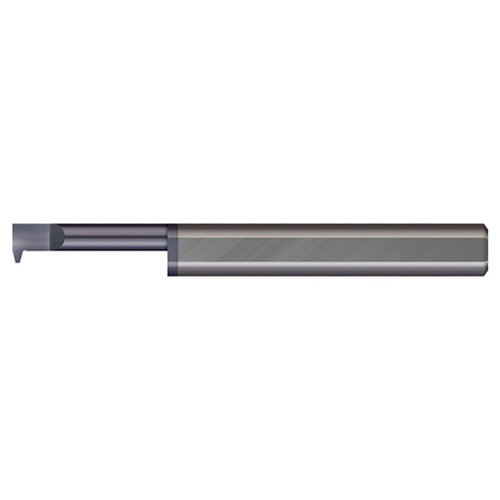

Micro 100 SAT-2000-6X | 6 TPI x 0.127" Minimum Bore Diameter x 2" Maximum Bore Depth x 1/2" Shank x 3.000" OAL AlTiN Coated Brazed Carbide Stub Length Single Point Acme Threading Tool

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.4900"
Hand Direction	Right Hand
Finish/Coating	AlTiN
Max Bore Depth (Inch)	2"
Max Bore Depth (Decimal Inch)	2.000"
Projection (Decimal Inch)	0.1200"
Shank Diameter (Inch)	1/2"
Shank Diameter (Decimal Inch)	0.5000"
Centerline Offset (Decimal Inch)	0.2400"
Offset (Decimal Inch)	0.076"
Face Dimension (Inch)	1/4"
Face Dimension (Decimal Inch)	0.250"
Flat Width (Decimal Inch)	0.065"
Neck Diameter (Decimal Inch)	0.3650"
Overall Length (Inch)	3"
Overall Length (Decimal Inch)	3.00"
Split Length (Decimal Inch)	0.275"
Tooth Width (Decimal Inch)	0.1270"
TPI	6
