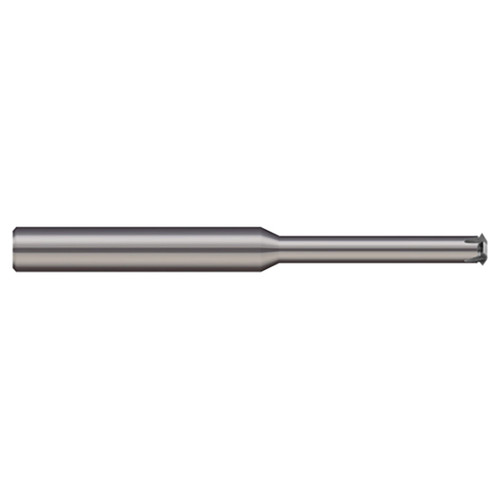

Micro 100 TM-140-12 | 24-56 TPI 0.0750" Neck Diameter x 3/4" Neck Length Uncoated Carbide Thread Mill

$67.50
Ships:
From Partner Facility
Brand:
Micro 100
Minimum Threads Per Inch:
24
Maximum Threads Per Inch:
56
Thread Type:
Internal/External
Material:
Carbide
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Number of Flutes:
3
Cutter Diameter (Inch):
9/64"
Cutter Diameter (Decimal Inch):
0.1400"
Neck Diameter (Decimal Inch):
0.0750"
Neck Length (Inch):
3/4"
Neck Length (Decimal Inch):
0.750"
Finish/Coating:
Uncoated
Ships:
From Partner Facility
SKU:
15020806
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Cutter Diameter (Inch) 9/64"
Cutter Diameter (Decimal Inch) 0.1400"
Coating Uncoated
Flutes 3
Length of Cut (Decimal Inch) 0.038"
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Flat Width (Decimal Inch) 0.001"
Neck Diameter (Decimal Inch) 0.0750"
Neck Length (Inch) 3/4"
Neck Length (Decimal Inch) 0.750"
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.00"
Thread Size 24-56
