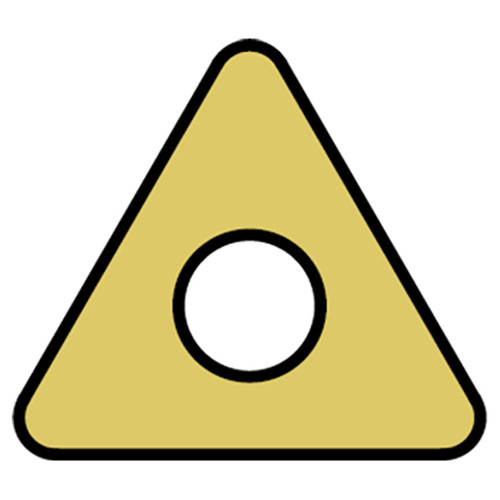

Micro 100 TP-61 | TP-61 Carbide Milling Insert, C2 Grade Uncoated

$15.35
Ships:
From Partner Facility
Brand:
Micro 100
Insert Style:
TP-61
Material:
Carbide
Material Grade:
C2
Finish/Coating:
Uncoated
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.375"
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.125"
Ships:
From Partner Facility
IsDiscontinued:
SKU:
23046718
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Coating Uncoated
Corner Radius (Inch) 1/64"
Corner Radius (Decimal Inch) 0.015"
Angle per Side 30 Degree
Included Angle 60 Degree
Insert Height (Decimal Inch) 0.5479"
Insert Hole Diameter (Decimal Inch) 0.163"
Insert Inscribed Circle (Inch) 3/8"
Insert Inscribed Circle (Decimal Inch) 0.375"
Insert Style TP
Insert Thickness (Inch) 1/8"
Insert Thickness (Decimal Inch) 0.125"
Screw Thread 6-32
