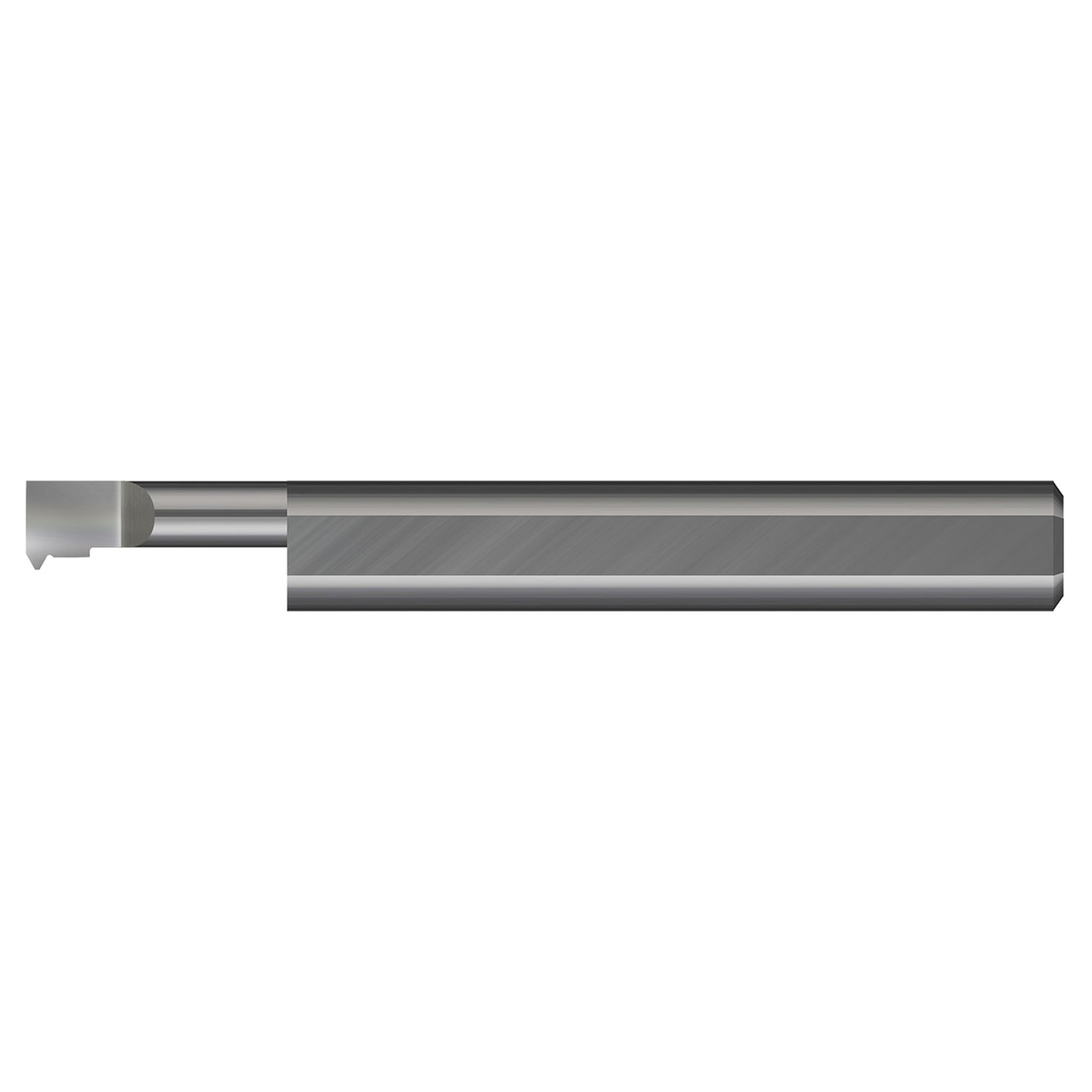

Our Un topping single point threading tools are designed for threading 60° Un pitches in a right hand topping application, and generate a controlled thread height with a reduction in burr formation.
Features:- Topping design generates a controlled thread height with a reduction in burr formation
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split face geometry provides optimal edge strength
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT-001032-040X |
| Minimum Bore Diameter (Inch) | 0.1360" |
| Maximum Bore Depth (Inch) | 0.400" |
| Projection (Inch) | 0.0169" |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Centerline Offset (Inch) | 0.0263" |
| Offset (Inch) | 0.017" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Overall Length (Inch) | 1.50" (1-1/2) |
| Neck Diameter (Inch) | 0.0920" |
| Thread Size | 10-32 |
| Hand Direction | Right Hand |
| Coating | AlTiN |
