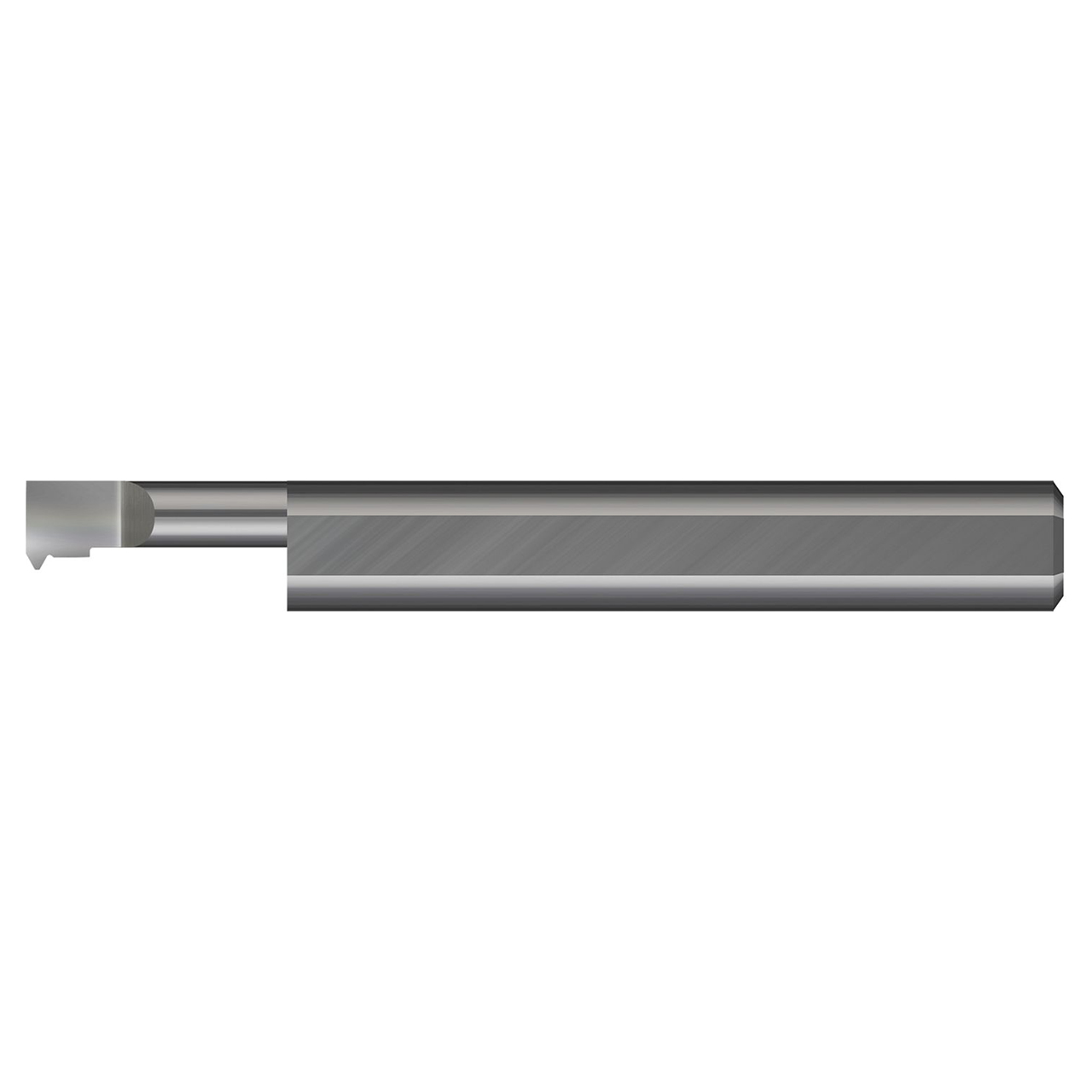

Our Un topping single point threading tools are designed for threading 60° Un pitches in a right hand topping application, and generate a controlled thread height with a reduction in burr formation.
Features:- Topping design generates a controlled thread height with a reduction in burr formation
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split face geometry provides optimal edge strength
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT-034016-100 |
| Minimum Bore Diameter (Inch) | 0.5120" |
| Maximum Bore Depth (Inch) | 1.000" (1) |
| Projection (Inch) | 0.0338" |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Centerline Offset (Inch) | 0.2400" |
| Offset (Inch) | 0.028" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Overall Length (Inch) | 3.00" (3) |
| Neck Diameter (Inch) | 0.4450" |
| Thread Size | 3/4-16 |
| Hand Direction | Right Hand |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.5120"
Minimum Bore Diameter (mm):
13.00mm
Head Width (Decimal Inch):
0.4900"
Finish/Coating:
Uncoated
Maximum Bore Depth (Inch):
1"
Maximum Bore Depth (Decimal Inch):
1.0000"
Projection (Decimal Inch):
0.0338"
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Included Angle:
60 Degree
Neck Diameter (Decimal Inch):
0.4450"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
