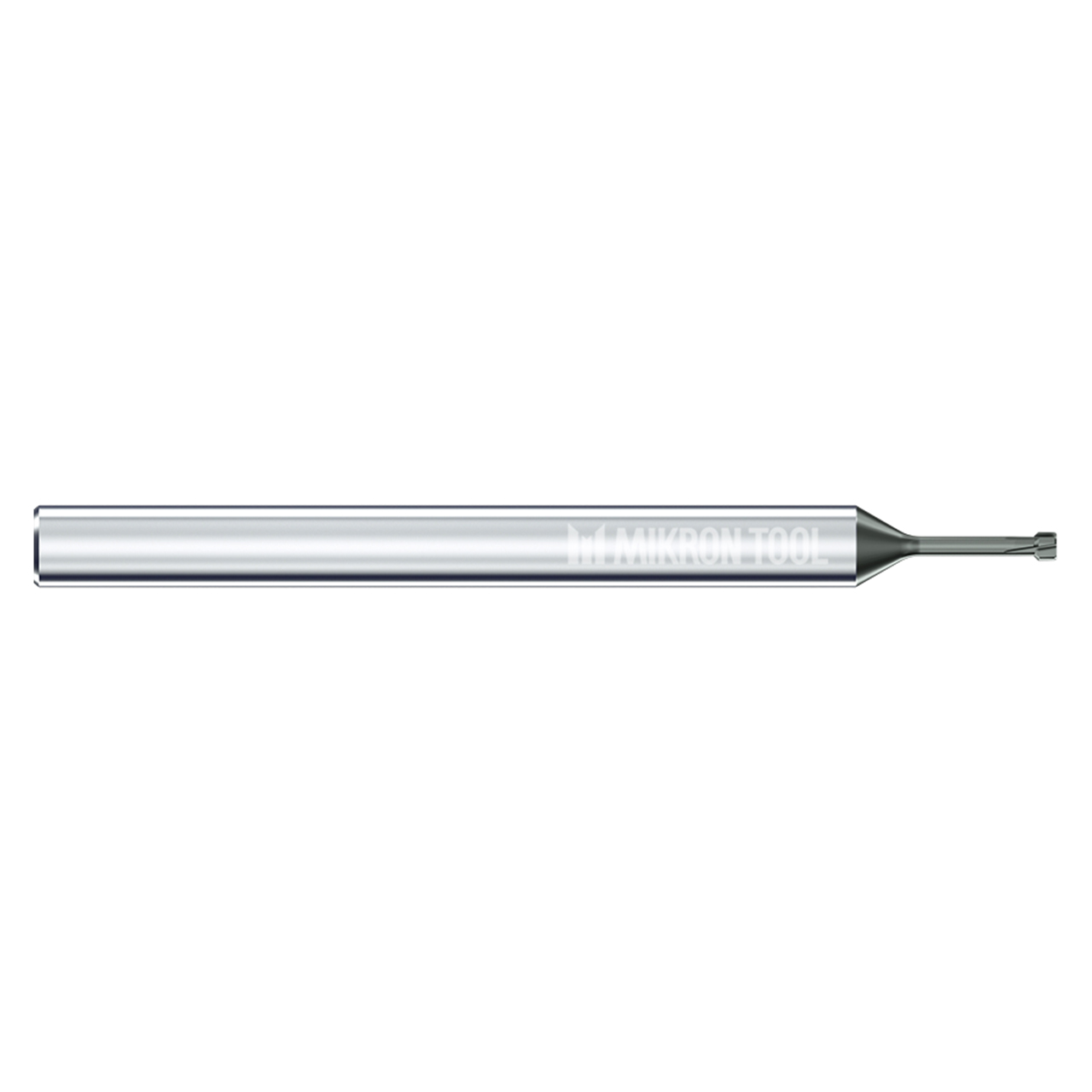

Mikron Tool 2.BC.03090090.1 | CrazyMill Chamfer 0.006" Size x 0.035" Head Diameter x 0.157" Shank x 0.157" LOC x 1.970" OAL 4 Flute eXedur RIP Coated Back Chamfer Tool

$108.40
Brand:
Mikron Tool
Cutter Head Diameter (Decimal Inch):
0.0350"
Cutter Head Diameter (mm):
0.90mm
Number of Flutes:
4
interval quantity:
1
SKU:
25354395
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Mikron Tool 2.BC.03090090.1 | CrazyMill Chamfer 0.006" Size x 0.035" Head Diameter x 0.157" Shank x 0.157" LOC x 1.970" OAL 4 Flute eXedur RIP Coated Back Chamfer Tool

Product Specifications
Manufacturer Part Number2.BC.03090090.1
Cutter Head Diameter d1 (Decimal Inch)0.035"
Cutter Head Diameter d1 (mm)0.90mm
Chamfer Size (Decimal Inch)0.006"
Chamfer Size (mm)0.15mm
Cutter Head Diameter d2 (Decimal Inch)0.024"
Cutter Head Diameter d2 (mm)0.60mm
Length of Cut (Decimal Inch)0.157"
Length of Cut (mm)4.00mm
Neck Length (Decimal Inch)0.020"
Neck Length (mm)0.50mm
Shank Diameter (Decimal Inch)0.157"
Shank Diameter (mm)4.00mm
Overall Length (Decimal Inch)1.970"
Overall Length (mm)50.00mm
Maximum Drill Depth3xd1
Chamfer Angle (Degree)90 Degree
Number of Flutes4
CoatingeXedur RIP
Product TypeBack Chamfer Tool
