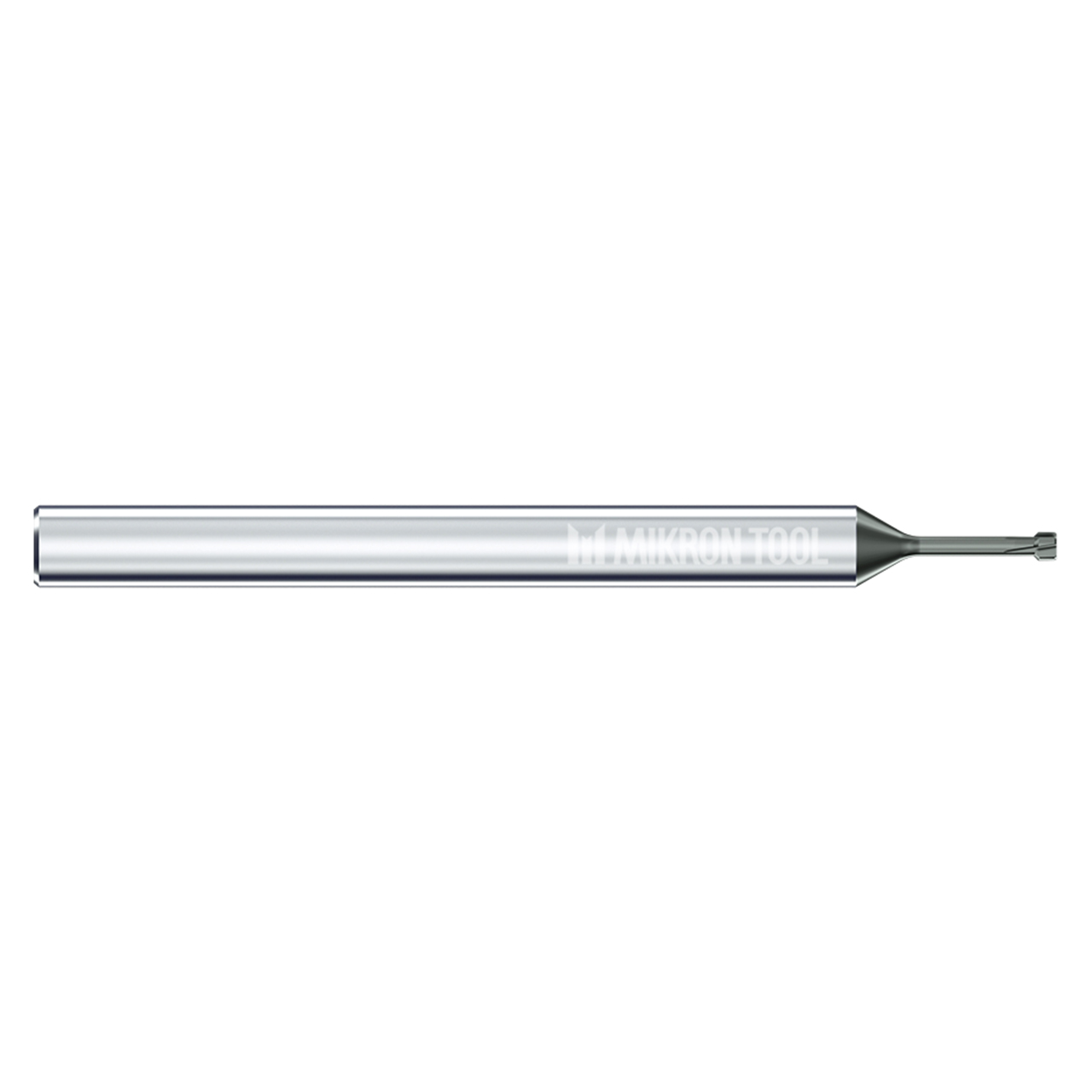

Mikron Tool 2.BC.03290090.1 | CrazyMill Chamfer 0.016" Size x 0.114" Head Diameter x 0.157" Shank x 0.472" LOC x 2.360" OAL x 90 Degree Chamfer Angle 5 Flute eXedur RIP Coated Back Chamfer Tool

Mikron Tool 2.BC.03290090.1 | CrazyMill Chamfer 0.016" Size x 0.114" Head Diameter x 0.157" Shank x 0.472" LOC x 2.360" OAL x 90 Degree Chamfer Angle 5 Flute eXedur RIP Coated Back Chamfer Tool

SKU: 25354398 Weight: 0.03 LBS Minimum Purchase: 1 unit
UPC:
$139.55
Shipping: Calculated at Checkout

About This Item


Product Specifications
Manufacturer Part Number2.BC.03290090.1
Cutter Head Diameter d1 (Decimal Inch)0.114"
Cutter Head Diameter d1 (mm)2.90mm
Chamfer Size (Decimal Inch)0.016"
Chamfer Size (mm)0.40mm
Cutter Head Diameter d2 (Decimal Inch)0.083"
Cutter Head Diameter d2 (mm)2.10mm
Length of Cut (Decimal Inch)0.472"
Length of Cut (mm)12.00mm
Neck Length (Decimal Inch)0.059"
Neck Length (mm)1.50mm
Shank Diameter (Decimal Inch)0.157"
Shank Diameter (mm)4.00mm
Overall Length (Decimal Inch)2.360"
Overall Length (mm)60.00mm
Maximum Drill Depth3xd1
Chamfer Angle (Degree)90 Degree
Number of Flutes5
CoatingeXedur RIP
Product TypeBack Chamfer Tool
