| Manufacturer Part Number | 2.DC.06370090.1 |
| Cutter Head Diameter d1 (Decimal Inch) | 0.146" |
| Cutter Head Diameter d1 (mm) | 3.70mm |
| Chamfer Size (Decimal Inch) | 0.029" |
| Chamfer Size (mm) | 0.74mm |
| Cutter Head Diameter d2 (Decimal Inch) | 0.087" |
| Cutter Head Diameter d2 (mm) | 2.22mm |
| Length of Cut (Decimal Inch) | 0.874" |
| Length of Cut (mm) | 22.20mm |
| Neck Length (Decimal Inch) | 0.058" |
| Neck Length (mm) | 1.48mm |
| Shank Diameter (Decimal Inch) | 0.157" |
| Shank Diameter (mm) | 4.00mm |
| Overall Length (Decimal Inch) | 2.360" |
| Overall Length (mm) | 60.00mm |
| Chamfer Angle (Degree) | 90 Degree |
| Number of Flutes | 5 |
| Coating | eXedur RIP |

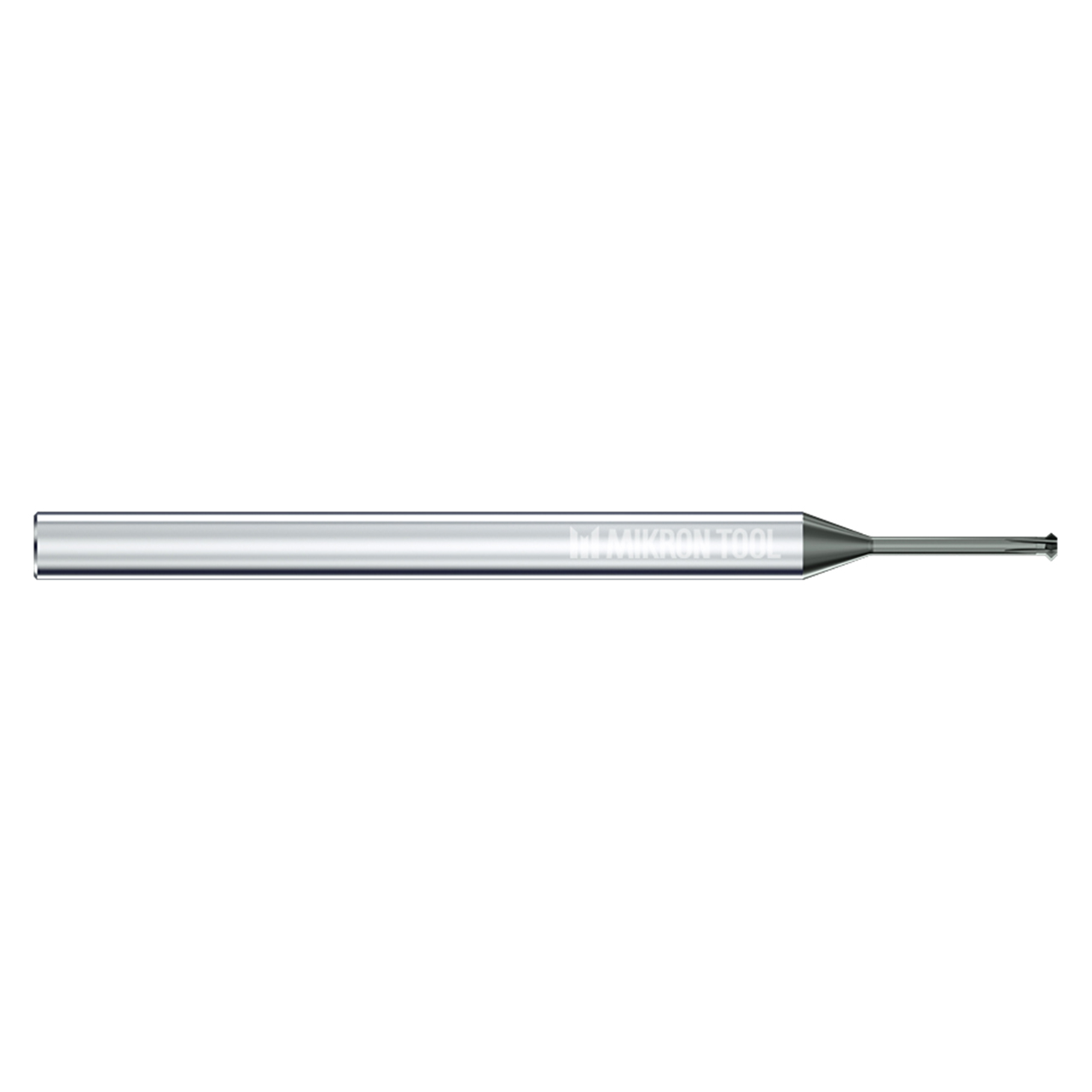

| Product Type | Double Chamfer Tool |
