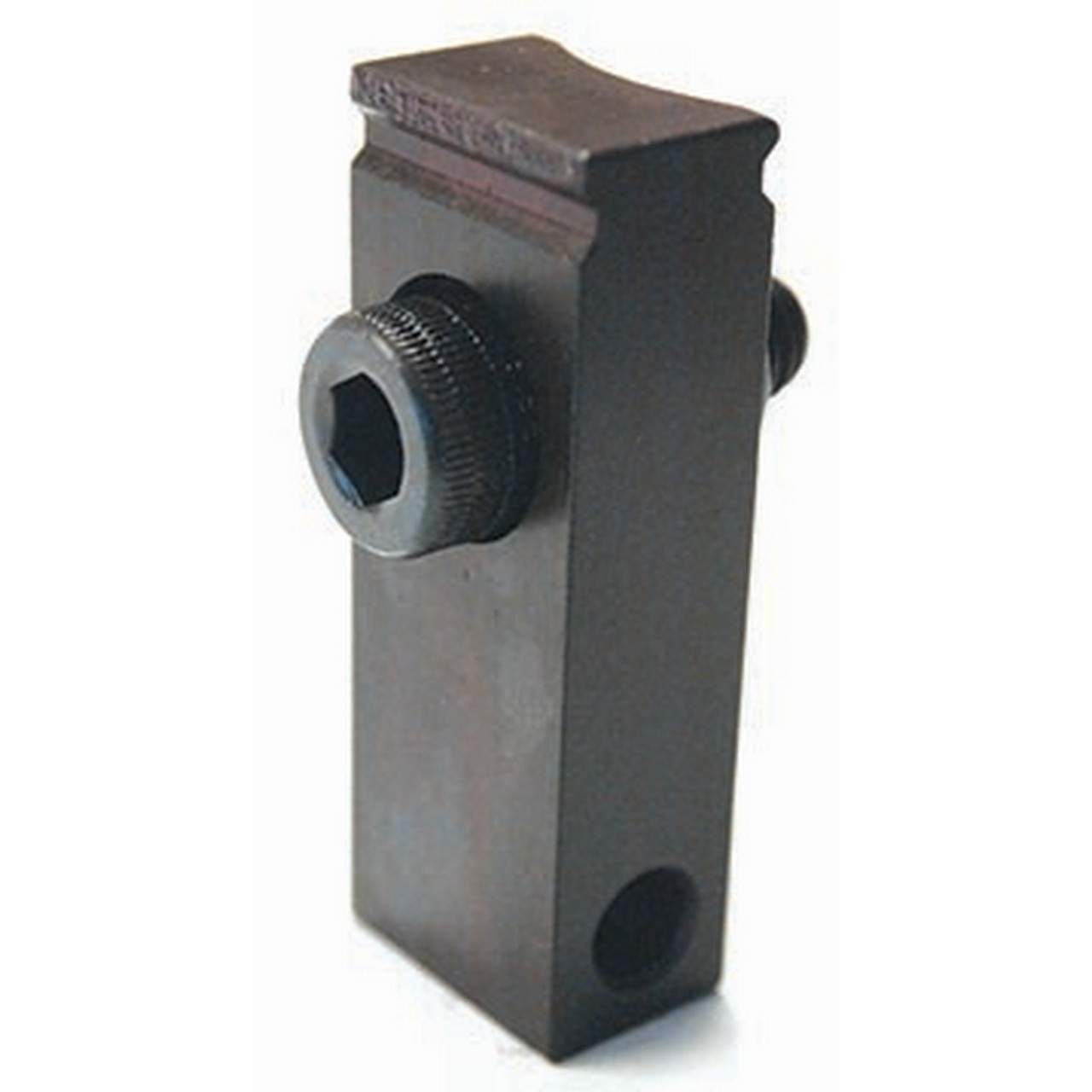

Mitee-Bite 14508 | Combo-Edge Gripper - 2 Pack

The Loc-Jaw system was conceived to simplify, and allow greater tooling access and more versatility securing yparts when 4th and 5th axis machining. Designed to hold raw stock without a pre-op using the carrier method, penetrating material using the Knife-edge grippers or holding machined surfaces with the Blunt-edge grippers installed.

Features:

• Unique design allows access to bottom of workpiece
• Ability to hold parts from .500" to 4.00" or up to 1 Meter with optional extension kit
• 6,000+ lbs of holding force gripping on only .125" of material
• Knife-Edge grippers designed to penetrate into material up to .060" deep. Blunt Edge Grippers are also included for non-marring applications. All grippers heat treated A2
• Gain maximum tool access to ywork
• Centering Disk included for Loc-Jaw base
• Set of locating pins included. (Liners installed in base)
• Blunt-edge grippers with #2 or #3 grit carbinite coating are reco mmended for high speed machining on hard alloys
