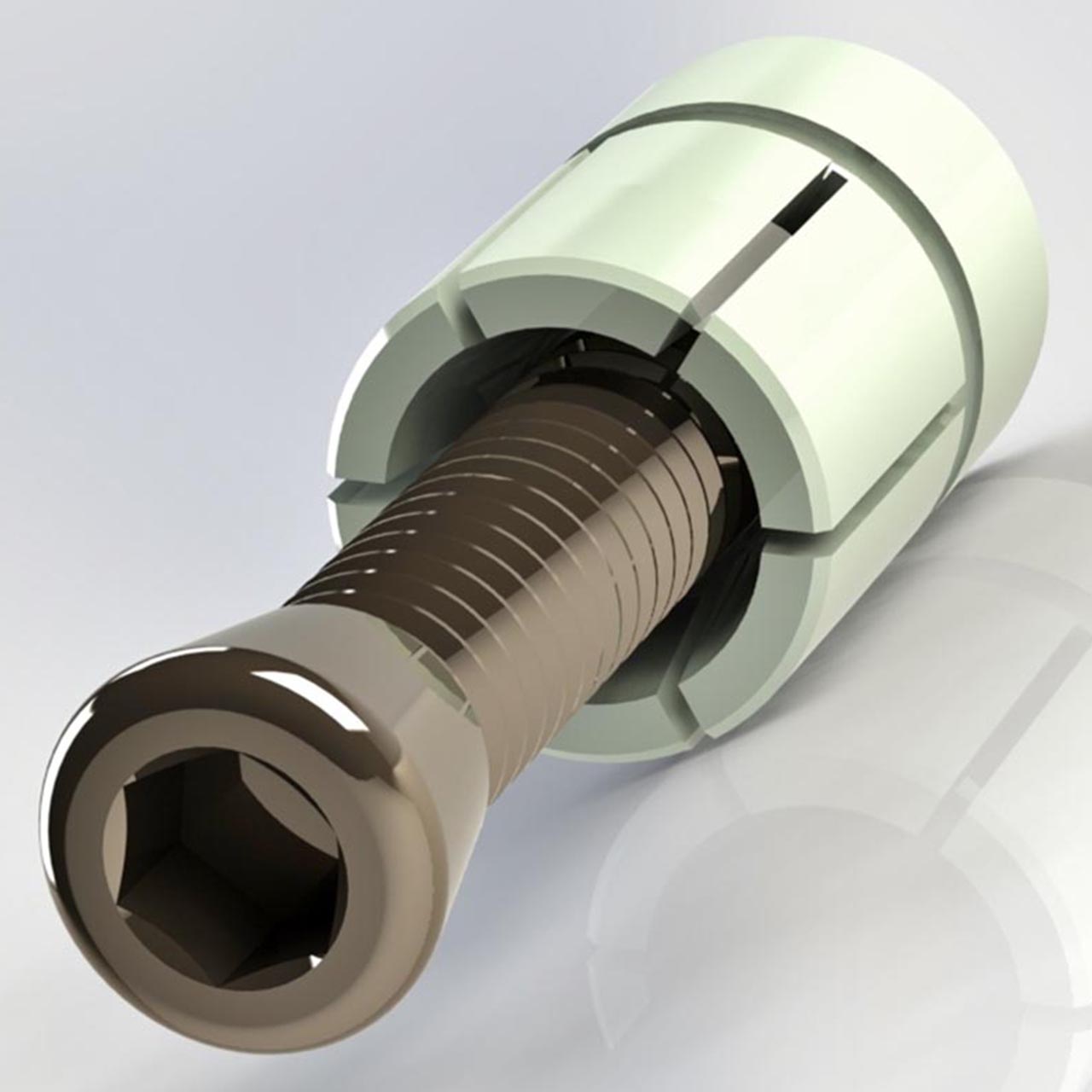

Mitee-Bite 31740 | 8-32 Screw Size x 3.6 ft-lbs Max Torque x 950 lbs Holding Force Modular XYZ Xpansion Pin

Description

The Mitee-Bite 31740 Modular XYZ Xpansion Pin is a high-performance workholding expansion pin manufactured for precision machining and secure fixturing applications. Engineered for reliability, this modular workholding pin features an 8-32 screw size, allowing easy integration into various CNC machining accessories and setups. With a maximum torque of 3.6 ft-lbs, it delivers controlled expansion for consistent clamping performance. The pin provides an impressive 950 lbs holding force, ensuring stability during demanding machining operations. Manufactured from heat treatable 17-4PH stainless steel, it offers excellent strength, durability, and resistance to wear. This workholding expansion pin is ideal for use in machine tool accessories, including tombstones and grid plates. Its compact and modular build enhances flexibility, making it suitable for custom fixturing configurations. The Modular XYZ Xpansion Pin allows precise positioning and repeatability in production environments. It is widely used in CNC machining for accurate and secure part holding. The robust construction supports long-term use under industrial conditions. Made for efficiency, it helps reduce setup time and improve machining productivity. The Mitee-Bite 31740 ensures consistent performance across multiple applications. Its reliable clamping force minimizes part movement during operation. This expansion pin is an essential solution for precision workholding needs. It enhances machining accuracy while maintaining operational efficiency.

Product Features and Benefits

High Holding Force Capability

The Mitee-Bite 31740 workholding expansion pin delivers 950 lbs holding force for secure and stable machining operations.

Controlled Torque Application

This Modular XYZ Xpansion Pin operates with 3.6 ft-lbs max torque for precise and consistent clamping performance.

Durable Stainless Steel Construction

Made from heat treatable 17-4PH stainless steel, this modular workholding pin ensures strength and long service life.

Compact 8-32 Screw Size Design

The 8-32 screw size allows easy integration of the Modular XYZ Xpansion Pin into CNC machining accessories.

Versatile Workholding Solution

This workholding expansion pin is suitable for machine tool accessories, including tombstones and grid plate setups.

Frequently Asked Questions

What is the holding force of the Mitee-Bite 31740?

The Mitee-Bite 31740 Modular XYZ Xpansion Pin provides 950 lbs holding force for secure workholding applications.

What torque is required for operation?

This workholding expansion pin requires a maximum torque of 3.6 ft-lbs for proper clamping performance.

What screw size does this expansion pin use?

The modular workholding pin features an 8-32 screw size for compatibility with various setups.

What material is the Mitee-Bite 31740 made from?

It is constructed from heat treatable 17-4PH stainless steel for durability and strength.

Where can this expansion pin be used?

This Modular XYZ Xpansion Pin is used in CNC machining accessories and machine tool accessories for precise workholding.
