Mitee-Bite 46600 | M12 Screw Size x 20.3N.m Max Torque Quick Change Receiver

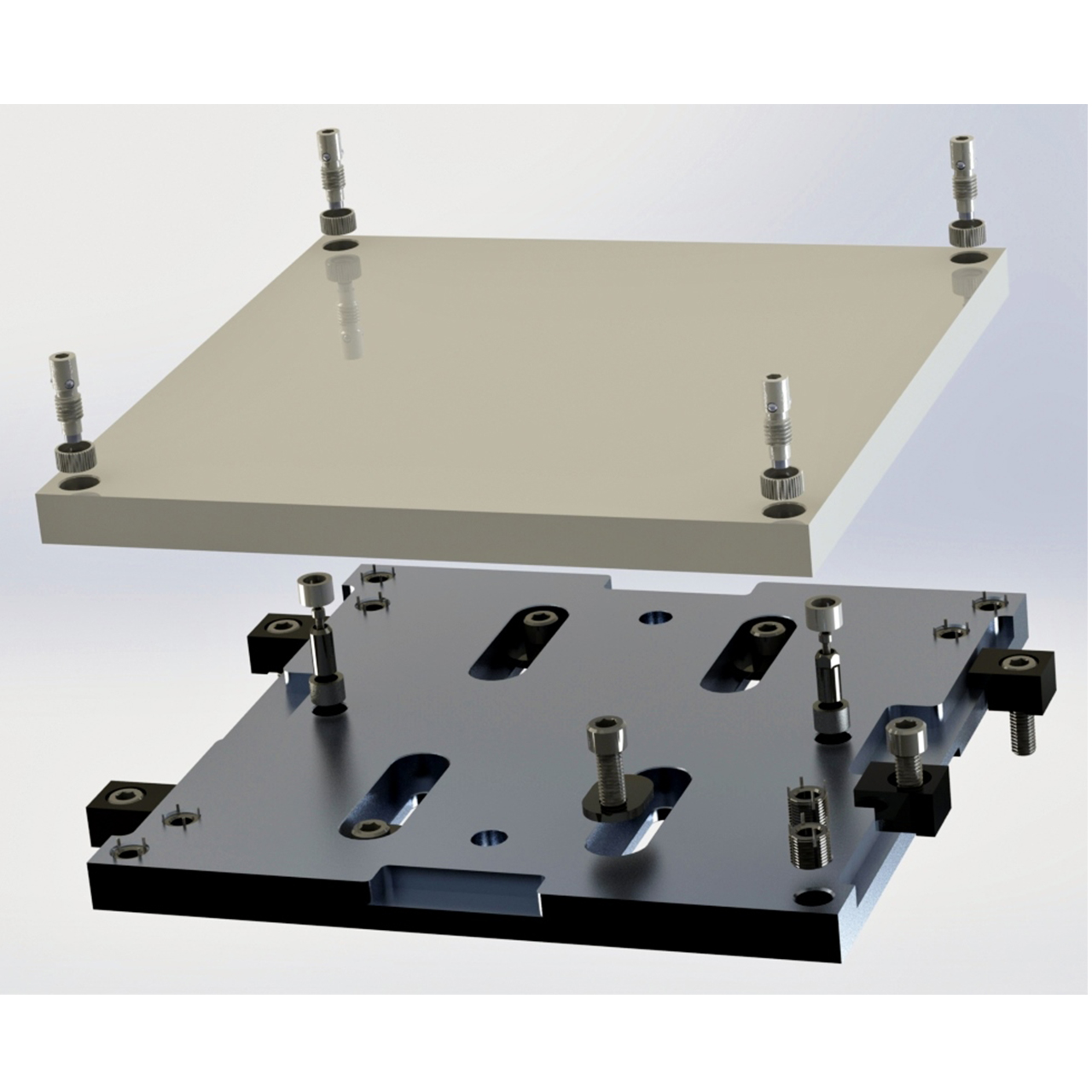

MITEE-BITE announces the addition of a cost effective simple Quick Change Receiver System allowing for the rapid change out and precise location of small fixture pallets. The Mitee-Bite Quick Change Receiver is designed to accept any of current pallets as well as the blank pallet shown. The receiver mounts on t-slot tables, tombstones, sub-plates and Aluminum T-Slot Grid Plates. Special washers and mounting clamps are provided with the system.

Features:

• All hardware recessed allowing the receiver to be skim cut to perfectly match the table
• Receiver furnished with diamond and taper pins and hardened liner bushings, threaded steel inserts, special washers and mounting clamps
• Blank pallet is fastened to the receiver with Loc-Down System, two turns of the Loc-Down releases the pallet. 100 lbs. of force for every foot pound of torque
• The Loc-Down is not removed from the receiver – lost cumbersome fasteners are a thing of the past
• No protruding fastener above the surface of the pallet to interfere with tooling
• High precision for a LOW COST solution!
• Blank pallet sold separately
