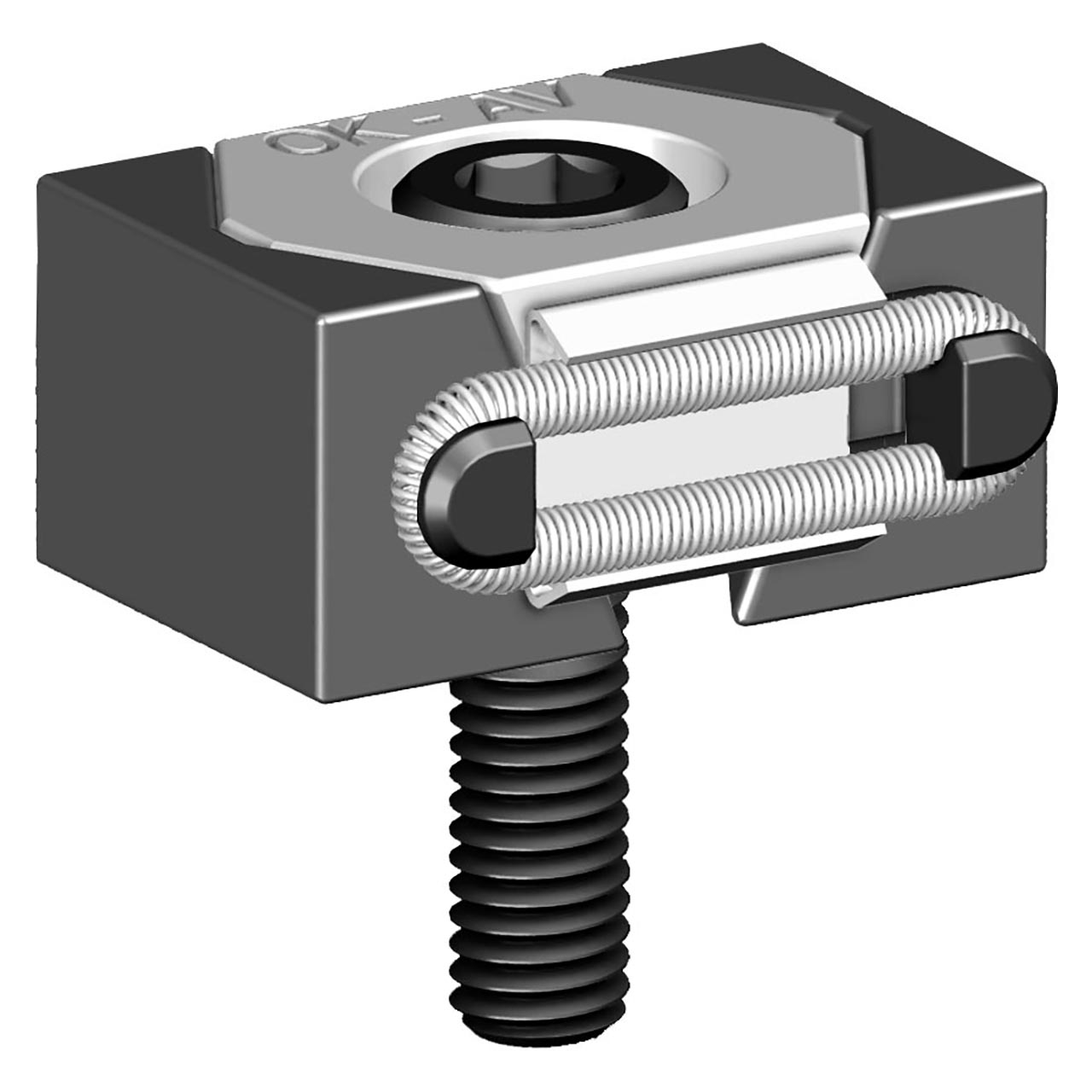

Mitee-Bite 47100 | 10-32 Screw Size x 7 ft-lb Max Torque x 2000 lbs Holding Force OK-Vise Clamp

Description

The Mitee-Bite 47100 OK-Vise clamp is a compact yet powerful workholding solution manufactured for precision machining applications. Built with a 10-32 screw size and capable of delivering up to 2000 lbs holding force, this wedge clamp ensures secure and stable clamping during cutting operations. Its low-profile design makes it an excellent space-saving clamping system, allowing machinists to maximize workspace efficiency while maintaining strong grip performance. The clamp operates using a wedge mechanism that generates downward force, ensuring parts remain firmly seated against the fixture base. This design minimizes vibration and enhances machining accuracy, especially in high-speed or multi-axis operations. With a maximum torque of 7 ft-lb, the Mitee-Bite 47100 provides controlled clamping pressure without damaging delicate workpieces. The precision-ground surfaces improve repeatability, making it ideal for production environments. It is suitable for use on a wide range of materials, including steel, aluminum, and cast components. The compact footprint supports high-density fixture setups, increasing productivity per cycle. This 2000 lbs holding force wedge clamp is also compatible with custom fixturing, allowing flexibility in complex machining setups. Its durable construction ensures long service life even under demanding industrial use. As a reliable precision machining fixture clamp, it supports consistent part positioning and superior finish quality. The Mitee-Bite 47100 is widely used as a low clearance workholding solution in tight machining environments. It is also suitable for specialized applications such as EDM when configured appropriately. This clamp is an essential tool for achieving stable workholding during cutting operations.

Product Features and Benefits

High Holding Force Capacity

The Mitee-Bite 47100 delivers up to 2000 lbs holding force wedge clamp performance for secure workholding.

Compact Low-Profile Design

This space-saving clamping system allows efficient use in tight machining setups and dense fixture layouts.

10-32 Screw Compatibility

The OK-Vise 10-32 screw size clamp ensures precise adjustment and controlled clamping force.

Wedge-Based Pull-Down Action

Provides stable workholding during cutting operations by pulling the workpiece firmly against the base.

Precision Machined Surfaces

Improves repeatability and accuracy, making it a reliable precision machining fixture clamp.

Versatile Application Range

Suitable as a low clearance workholding solution for milling, drilling, and EDM applications.

Frequently Asked Questions

What is the holding capacity of the Mitee-Bite 47100?

This 2000 lbs holding force wedge clamp provides strong and stable clamping for machining tasks.

What screw size is used in this OK-Vise clamp?

The OK-Vise 10-32 screw size clamp allows precise tightening and consistent performance.

Is this clamp suitable for precision machining?

Yes, it functions as a precision machining fixture clamp for accurate and repeatable setups.

Can this clamp be used in tight spaces?

Its compact design makes it an ideal space-saving clamping system for limited work areas.

Does the clamp provide stable holding during machining?

Yes, it ensures stable workholding during cutting operations with its wedge-based pull-down action.
