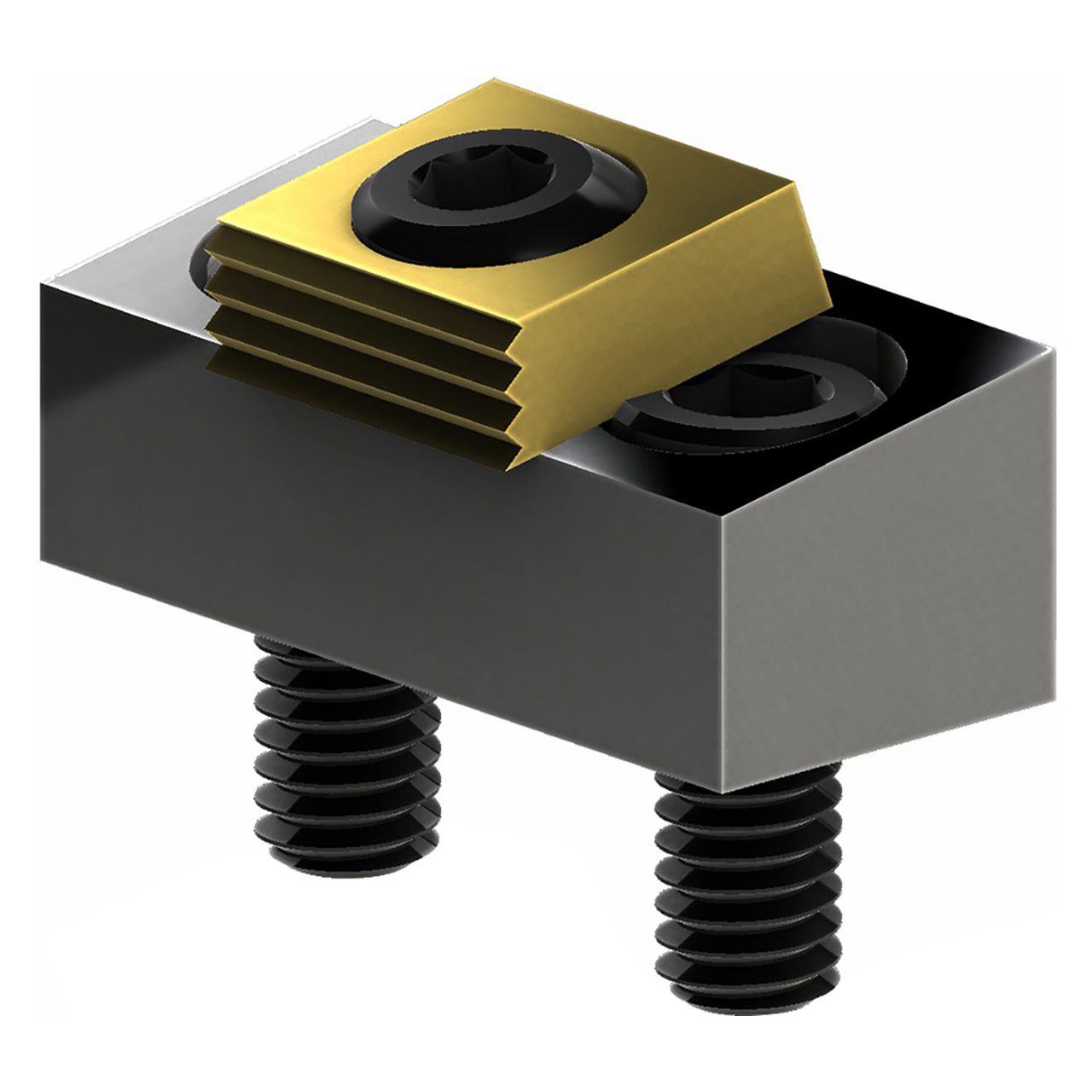

This cam action fixture clamp provides positive down force while using very little space on a fixture. Work pieces can be clamped in series by using the back surface of a clamp to locate the next work piece.
The hardened steel clamping element has both a smooth surface for machined work pieces and a serrated clamping surface for rougher work. The height of the clamp can be adjusted by milling the slot deeper in the fixture plate.
Product Specifications
| Screw Size | M10x20 |
| Maximum Torque | 88.13 Nm |
| Holding Force | 17800 N |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Mitee-Bite
Ships:
From Manufacturer
