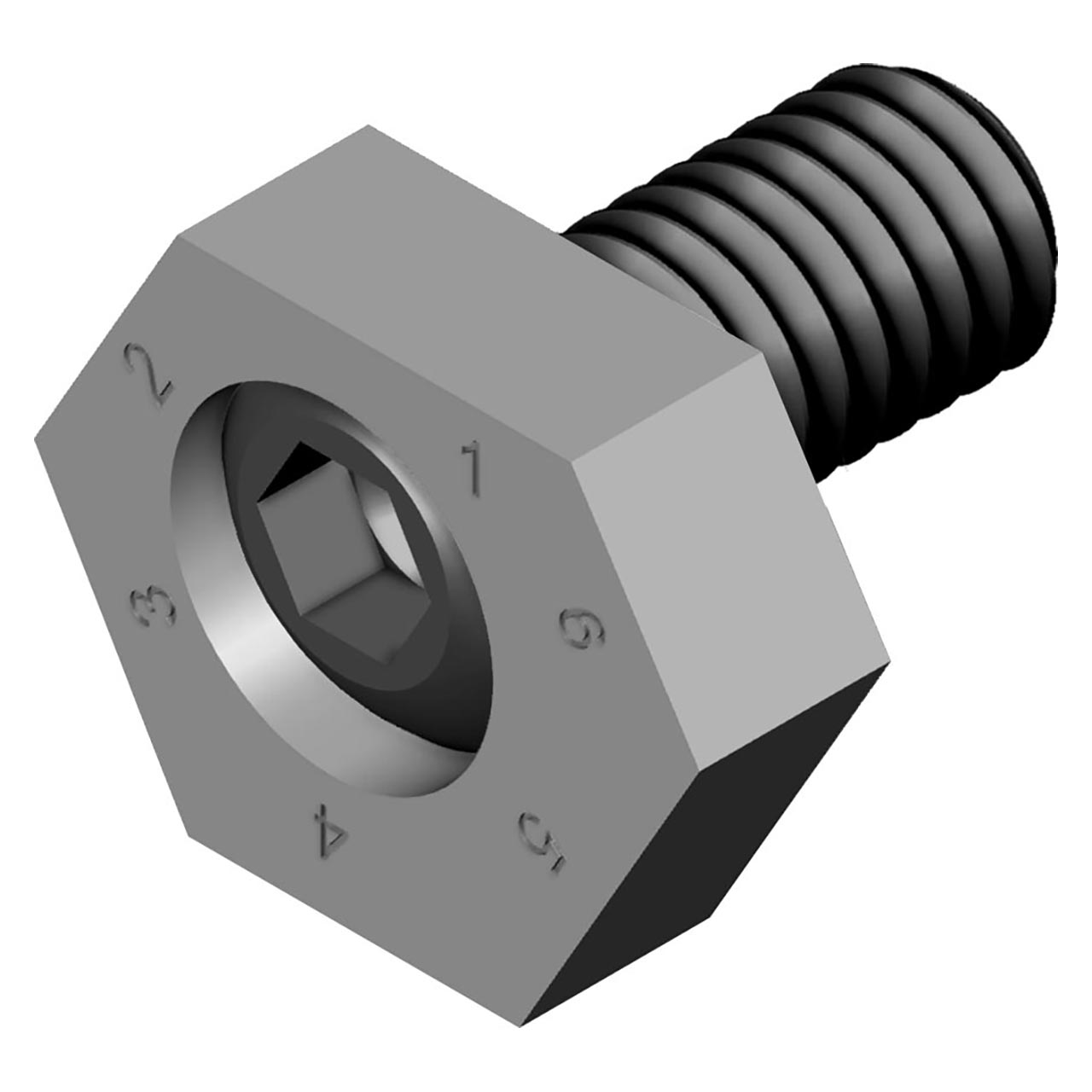

Mitee-Bite 90110 | 1/2"-13 Screw Size x 65 ft-lb Max Torque x 4000 lbs Holding Force 1-6 Smooth Series-9 Clamp

This adjustable low profile, cam action clamp provides clamping of different size workpieces merely by rotating the clamp to one of its other edges. The clamps are .394 (10 mm) high and use a 1/2-13 (M12) cam screw. Each of the six clamping surfaces is a different distance from the centerline by .0394 (1 mm) as shown in the chart. Therefore, one Series-9 Clamp can hold parts that vary up to 0.1968 (5 mm) simply by rotating the clamp to a different clamping surface.

Features:

• Serrated or smooth edges
• Heat treated and plated
• 4,000 lbs. (17800 N.m.) holding force
• Simple, sturdy, high quality design and components
