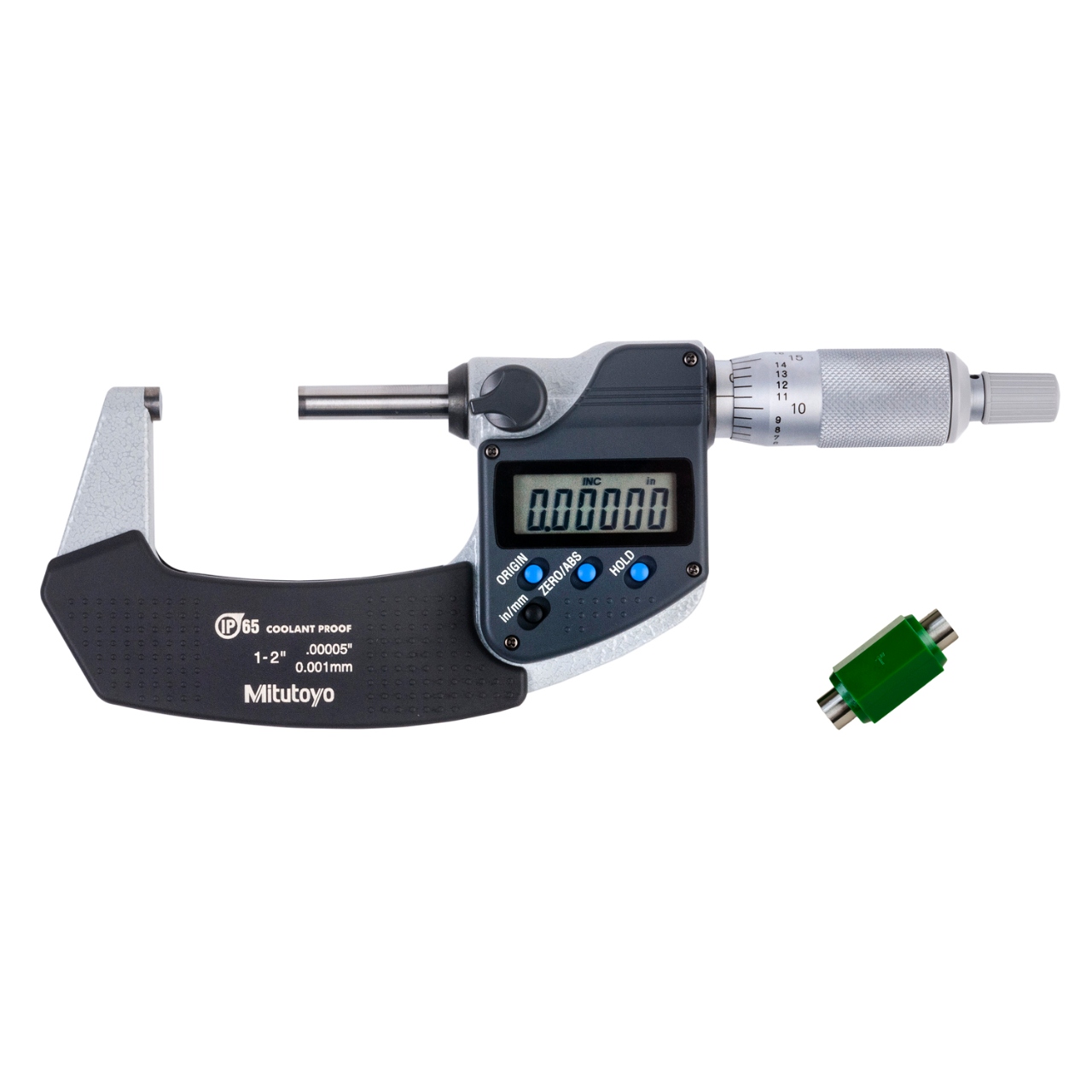

Mitutoyo 293-341-32 | 1.000" - 2.000" Range x 0.00005" Graduation x ±0.00005" Accuracy x 18.00mm Thimble x IP65 Emel Coated Hardened Steel 293 Series Electronic Outside Micrometer

Description

The Mitutoyo 293-341-32 Electronic Outside Micrometer is a precision measuring instrument for checking outside diameters, component thickness, and external dimensions from 1.000 to 2.000". With 0.00005" graduation and a listed accuracy of ±0.00005", it provides fine resolution for dimensional inspection in machine shops, manufacturing facilities, tool rooms, and quality control areas.

The instrument features an IP65 rating for protection against dust and water exposure. Its ratchet stop supports controlled contact with the workpiece, while the hardened steel construction provides a durable foundation for regular measurement work.

An auto power ON/OFF function helps simplify routine operation. A certificate of inspection is included with the product for inspection and equipment records.

The supplied specifications list Data Output Type: No, making the instrument suitable for measurement workflows where direct electronic data output is not required.

Product Features and Benefits

Fine Measurement Resolution

The 0.00005" graduation and 0.001 mm graduation provide fine resolution for dimensional inspection. The 1.000 to 2.000" measuring range covers many external measurement requirements for machined and manufactured components.

Ratchet Stop

The ratchet stop helps provide controlled contact between the measuring faces and workpiece. Consistent contact can support repeatable measurements during production and inspection work.

Automatic Power ON and OFF

The auto power ON/OFF function simplifies everyday operation. Automatic power control can be useful when the instrument is used repeatedly during dimensional inspection.

IP65 Protection

The IP65 rating provides protection against dust and water exposure. Appropriate cleaning, handling, and storage remain important for maintaining measurement performance.

Hardened Steel Construction

Hardened steel construction provides a durable body for regular use in machine shops, manufacturing environments, and inspection departments.

Flat Spindle Face

The flat spindle face provides a suitable contact surface for measuring compatible external dimensions. The 6.35 mm contact point diameter further defines the measuring interface.

Emel Coating

The supplied specifications identify an Emel coating as part of the product finish. The coating specification is included for product identification and selection.

Plastic Case Included

A plastic case is included with the instrument. The case provides a convenient storage solution when the micrometer is not in use.

Frequently Asked Questions

What is the measuring range of the Mitutoyo 293-341-32?

The measuring range is 1.000 to 2.000", or 25.40 to 50.80 mm.

What is the graduation?

The graduation is 0.00005" and 0.001 mm.

What is the listed accuracy?

The listed accuracy is ±0.00005".

Does the instrument have data output?

The supplied product specification lists Data Output Type: No.

Does it have automatic power control?

Yes. The instrument features automatic power ON/OFF operation.

What type of thimble does it use?

The product specifications list a ratchet stop.

What is the IP rating?

The Mitutoyo 293-341-32 has an IP65 rating.

What material is used for the construction?

The instrument is made from hardened steel.

What is the point flatness?

The specified point flatness is 0.000012".

What is the parallelism?

The listed parallelism is 0.00004".

What is the contact point diameter?

The contact point diameter is 6.35 mm.

What is the thimble diameter?

The thimble diameter is 18.00 mm.

Does the product include a case?

Yes. A plastic case is included.

What type of spindle face does it have?

The spindle face is flat.

What coating is specified?

The supplied specifications list an Emel coating.
