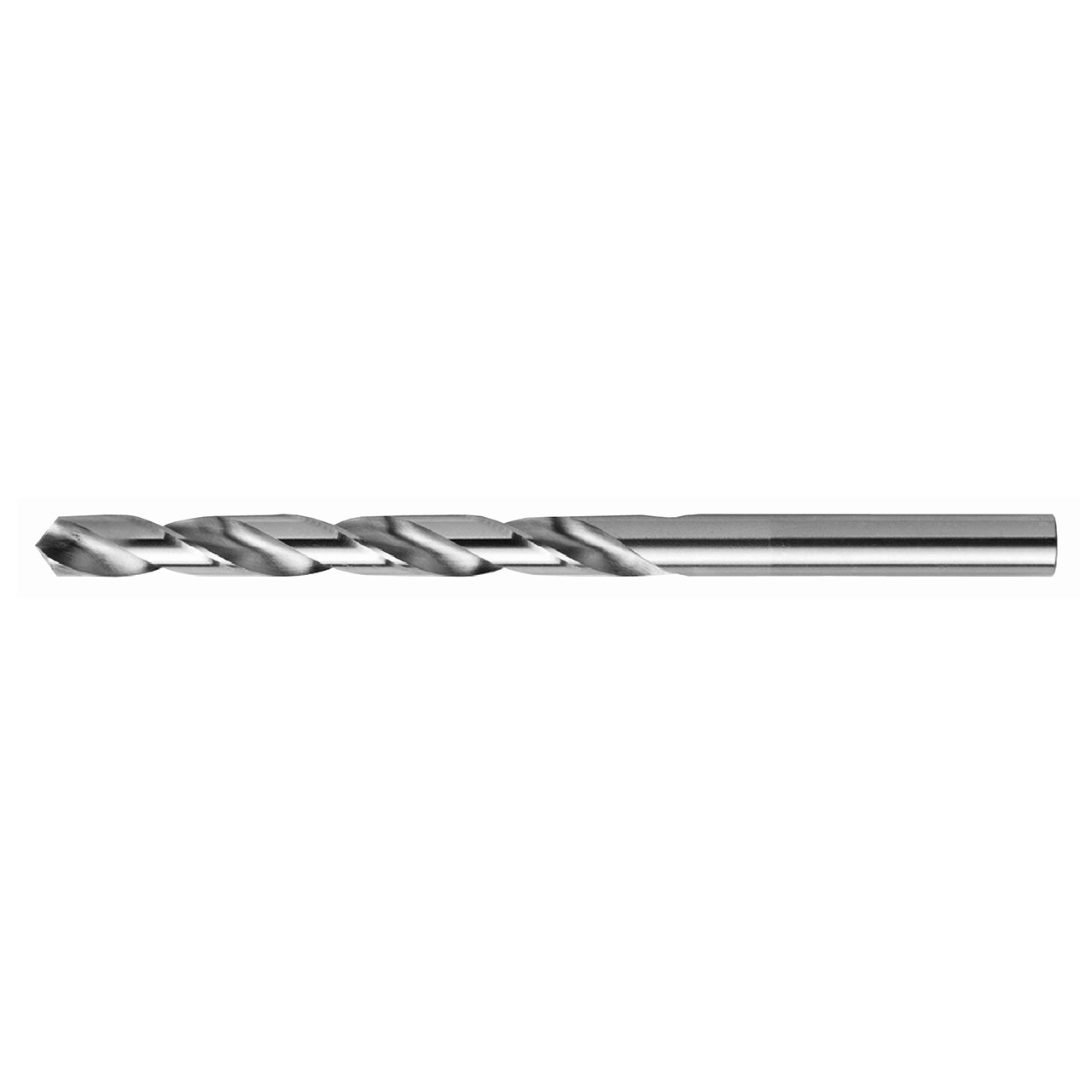

Product Specifications
| # Manufacturer Number | 1057030 |
| Diameter (Inch) | 27/64" |
| Shank (Inch) | 13/64"" |
| Flute Length (Inch) | 4-5/8" |
| Overall Length (Inch) | 7-1/4" |
| Drill Point Angle | 118 |
| Number of Flute | 3 |
| Material | HSS Cobalt |
| Finish / Coating | Bright |
| Coolant Through | Yes |
| Cutting Direction | Right |
| Flute Type | Conventional Spiral |
| Shank Type | Endmill Type Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Nachi
Flute Type:
Conventional Spiral
Drill Bit Size (Inch):
27/64";Drill Bit Size (Decimal Inch)=0.4219""
Drill Bit Size (mm):
10.72mm
Drill Point Angle:
118 Degree
Overall Length (Inch):
7-1/4";Overall Length (Decimal Inch)=7.2500""
Overall Length (mm):
184.15mm
Cutting Direction:
Right
Material:
HSS Cobalt
Finish/Coating:
Bright
Shank Type:
Endmill Type Shank
Coolant Through:
Yes
