Product Specifications

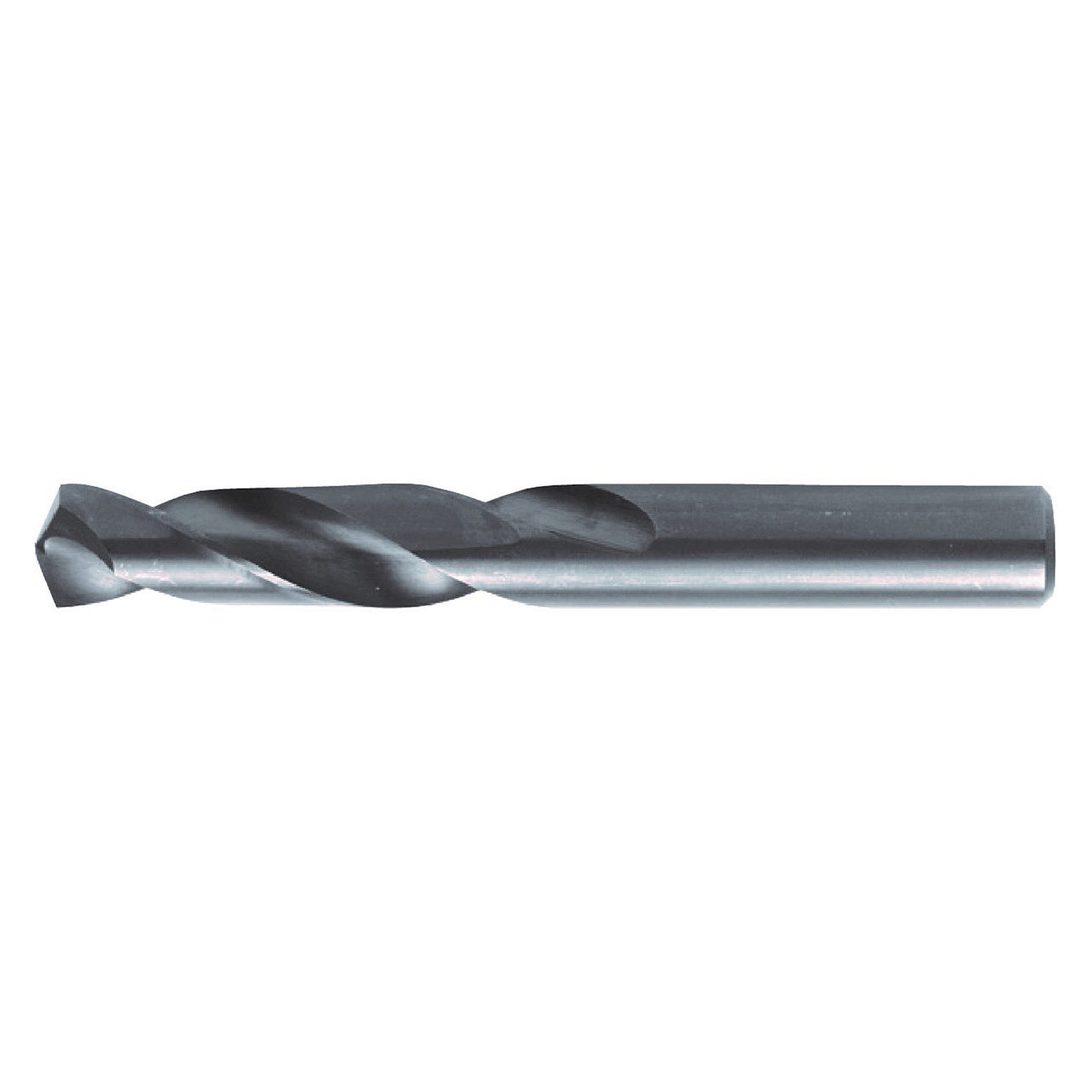

| # Manufacturer Number | 1080900 |
| Diameter (Inch) | 23/64" |
| Shank (Inch) | 13/64"" |
| Flute Length (Inch) | 1-3/4" |
| Overall Length (Inch) | 3-1/16" |
| Drill Point Angle | 135 |
| Number of Flute | 2 |
| Material | High Speed Cobalt Steel |
| Finish / Coating | Black Oxide |
| Coolant Through | No |
| Cutting Direction | Right |
| Flute Type | Conventional Spiral |
| Shank Type | Straight Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Nachi
Drill Bit Size (Inch):
23/64";Drill Bit Size (Decimal Inch)=0.3594""
Drill Bit Size (mm):
9.13mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
1-3/4";Flute Length (Decimal Inch)=1.7500""
Flute Length (mm):
44.45mm
Overall Length (Inch):
3-1/16";Overall Length (Decimal Inch)=3.0625""
Overall Length (mm):
77.79mm
Material:
High Speed Cobalt Steel
Finish/Coating:
Black Oxide
Flute Type:
Conventional Spiral
Cutting Direction:
Conventional Spiral
Shank Type:
Straight Shank
Coolant Through:
No
