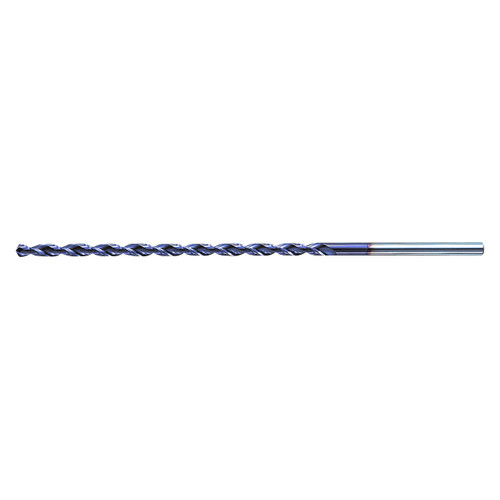

Product Specifications
| # Manufacturer Number | 1373052 |
| Diameter (Inch) | 17/64 |
| Shank (Inch) | 13/64"" |
| Flute Length (mm) | 155.00mm |
| Overall Length (mm) | 225.00mm |
| Drill Point Angle | 118 Degree |
| Number of Flute | 2 |
| Material | HSS |
| Finish / Coating | TiAlN |
| Coolant Through | No |
| Cutting Direction | Right |
| Flute Type | Conventional Spiral |
| Shank Type | Endmill Type Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Nachi
Drill Bit Size (Inch):
17/64";Drill Bit Size (Decimal Inch)=0.2656""
Drill Bit Size (mm):
6.75mm
Material:
HSS
Finish/Coating:
TiAlN
Overall Length (Inch):
8 6/7
Overall Length (Decimal Inch):
8.8583";Overall Length (mm)=225.00mm"
Flute Length (Inch):
6-1/9";Flute Length (Decimal Inch)=6.1024""
Flute Length (mm):
155.00mm
Drill Point Angle:
118 Degree
Coolant Through:
No
Shank Type:
Endmill Type Shank
