Product Specifications

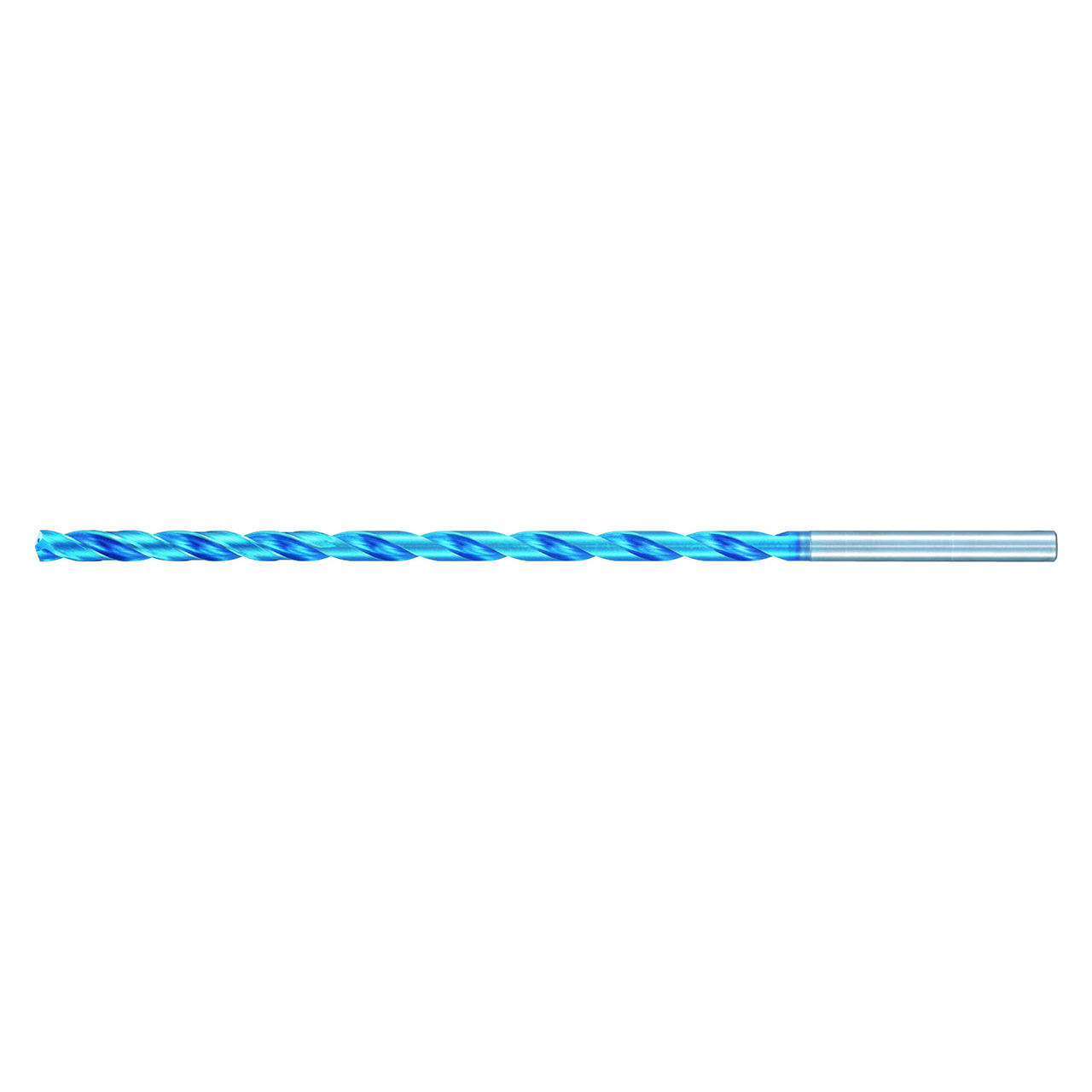

| # Manufacturer Number | 1519406 |
| Diameter (Inch) | 19/64" |
| Shank Size (mm) | 8.00mm |
| Flute Length (mm) | 184.00mm |
| Overall Length (mm) | 234.00mm |
| Drill Point Angle | 140 Degree |
| Number of Flute | 2 |
| Material | Carbide |
| Finish / Coating | Aqua EX |
| Coolant Through | Yes |
| Cutting Direction | Right |
| Flute Type | Conventional Spiral |
| Shank Type | Endmill Type Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Nachi
Drill Bit Size (Inch):
19/64";Drill Bit Size (Decimal Inch)=0.2969""
Drill Bit Size (mm):
7.54mm
Material:
Carbide
Finish/Coating:
Aqua EX
Overall Length (Inch):
9 1/5
Overall Length (Decimal Inch):
9.2126";Overall Length (mm)=234.00mm"
Flute Length (Inch):
7-1/4";Flute Length (Decimal Inch)=7.2441""
Flute Length (mm):
184.00mm
Drill Point Angle:
140 Degree
Coolant Through:
Yes
Shank Type:
Endmill Type Shank
