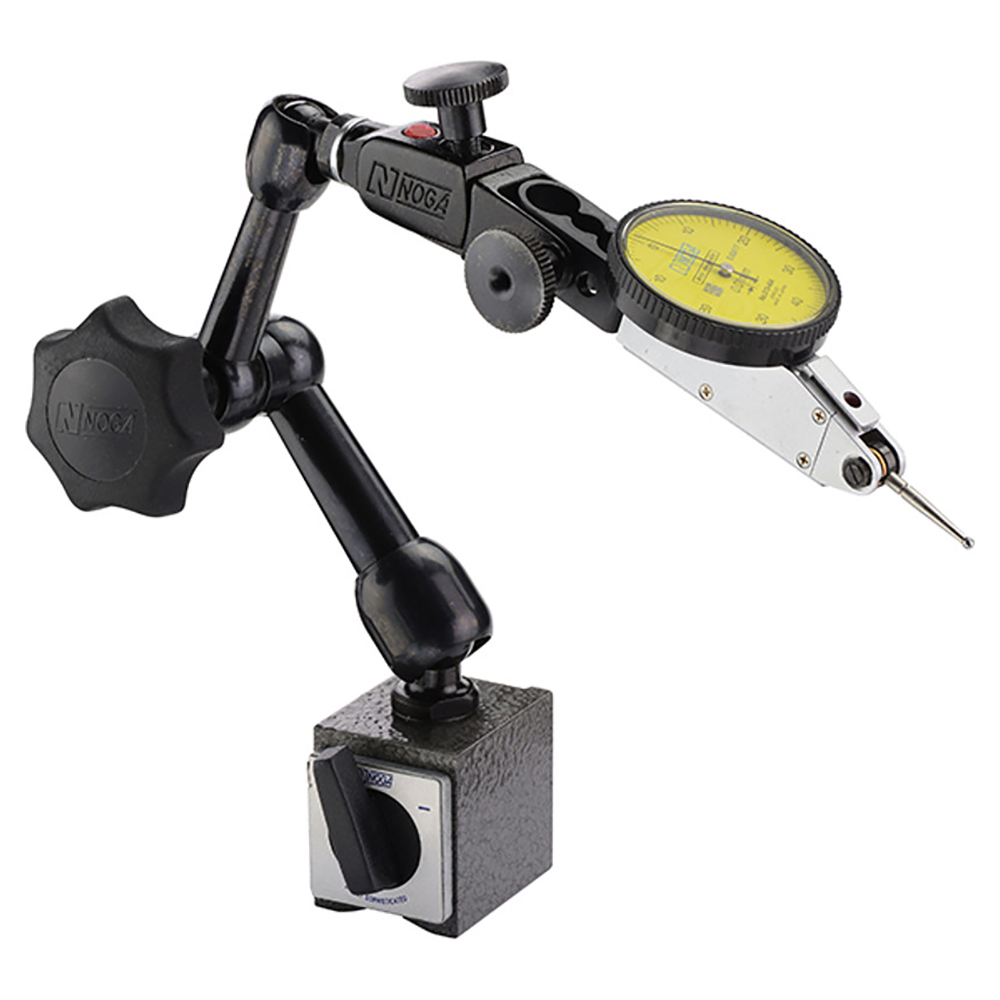

Noga NF6150 | Combo NF61003 Magnetic Base 70lb Hold & Metric Test Indicator Set

Description

The Noga NF6150 is a comprehensive magnetic base and metric test indicator combo set that pairs the powerful NF61003 magnetic base with the NF1000 lever-type metric dial test indicator, delivering a complete precision measurement solution for machinists, quality control technicians, and toolroom professionals. This NF61003 magnetic base with metric test indicator combination is engineered for fast setup, exceptional holding stability, and precise gauge positioning across a wide range of machining and inspection applications. The NF61003 magnetic base provides an impressive holding force of 320 N (approximately 70 lbs), making it one of the most powerful on & off magnetic bases available in its class and ensuring that the indicator remains locked securely in position throughout the measurement cycle even on vibrating machine surfaces. Featuring Noga's unique central locking mechanism with a spring loaded bearing design, this precision magnetic base with articulated holder offers instant fixation in any three-dimensional position, allowing operators to position the indicator arm exactly where it is needed without the multi-step adjustments required by conventional magnetic bases. The NF61003's dial gauge holder is fully three dimensional, accepting 6mm, 8mm, 3/8-inch, and dovetail shanks, giving this magnetic indicator holder with metric dial gauge compatibility with virtually all standard indicator sizes and mounting configurations. The bottom arm measures 56mm and the top arm measures 51 mm, providing a total articulated reach of 178mm, while the bottom thread is an external M5, allowing for additional mounting flexibility. The magnet itself measures 30mm wide by 40mm long by 35mm high, providing a substantial contact footprint for maximum holding security on ferrous machine surfaces. The NF1000 lever-type metric dial test indicator included in the Noga NF6150 set features a 39mm dial diameter, a measuring range of 0.8mm, and a graduation resolution of 0.01mm, making this metric dial test indicator for machining ideal for runout checks, surface parallelism verification, and part alignment tasks. The contact point of the NF1000 is 2mm in diameter and 20.9mm in length, and the indicator features three dovetails for flexible clamping to the NF61003's holder arm. The black-finished articulated arms of this magnetic base stand with universal clamp provide a professional appearance while resisting corrosion and surface damage in typical workshop environments. Together, the NF61003 and NF1000 form a fast-deploying, highly accurate measurement system that sets up in seconds and delivers reliable results every time.

Product Features and Benefits

320 N / 70 lb Magnetic Holding Force

The NF61003 magnetic base delivers 320 N of on & off magnetic holding force, providing the most secure base stability available in this magnetic base stand with universal clamp class for vibration-resistant indicator positioning.

Unique Central Locking Mechanism With Spring-Loaded Bearing

Noga's exclusive central locking design with spring-loaded bearing on this precision magnetic base with articulated holder enables instant fixation in any three-dimensional position, eliminating multi-step adjustments during indicator setup.

Universal Clamp Accepts Multiple Shank Sizes

The magnetic indicator holder with metric dial gauge accepts 6mm, 8mm, 3/8-inch, and dovetail shank sizes, ensuring broad compatibility with virtually all standard dial gauges and test indicators used in machining and inspection environments.

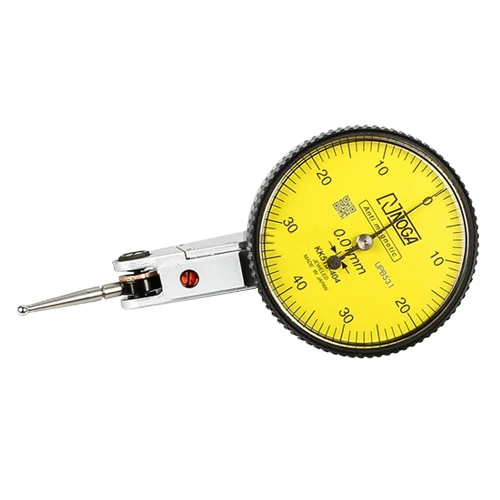

NF1000 Lever-Type Metric Dial Test Indicator

The included NF1000 offers a 39 mm dial, 0.8 mm measuring range, and 0.01mm graduation resolution, making this metric dial test indicator for machining ideal for precise runout, parallelism, and alignment measurement tasks.

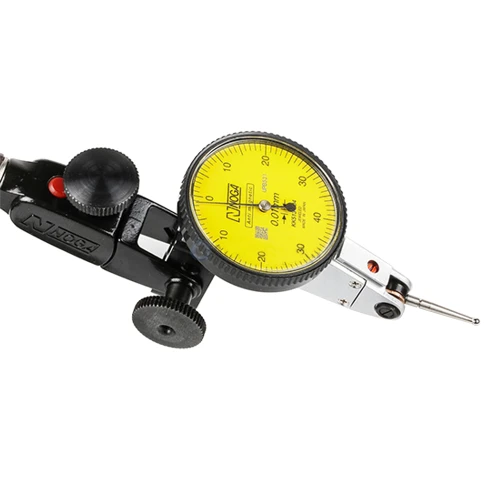

Three-Dovetail Indicator Mounting For Flexible Positioning

The NF1000 features three dovetail mounting positions on this Noga magnetic base test indicator kit, allowing machinists to orient the indicator face for maximum readability in confined or awkward measurement setups.

Frequently Asked Questions

What is the holding force of the Noga NF61003 magnetic base?

The NF61003 magnetic base with metric test indicator delivers 320 N (approximately 70 lbs) of magnetic holding force, making the Noga NF6150 one of the most secure 70 lb hold magnetic base and indicator combo solutions available.

What shank sizes does the Noga NF6150 magnetic indicator holder accept?

The magnetic indicator holder with metric dial gauge accepts 6mm, 8mm, 3/8-inch, and dovetail shanks, providing universal compatibility for most standard dial gauges and test indicators used in precision machining setups.

What are the specifications of the NF1000 metric dial test indicator in the Noga NF6150 set?

The NF1000 features a 39mm dial diameter, 0.8mm measuring range, and 0.01mm graduation resolution, making this metric dial test indicator for machining precise enough for runout checks and surface parallelism verification.

How does the central locking mechanism on the Noga magnetic base test indicator kit work?

Noga's unique spring-loaded bearing central locking system on the precision magnetic base with articulated holder allows instant, single-action fixation of the arm in any three-dimensional position for fast and repeatable indicator placement.

What is the total articulated reach of the NF61003 magnetic base stand with universal clamp?

The NF61003 features a 56 mm bottom arm, 51 mm top arm, and a total articulated length of 178 mm, giving this magnetic base stand with universal clamp generous reach for positioning indicators in diverse machining and inspection scenarios.
