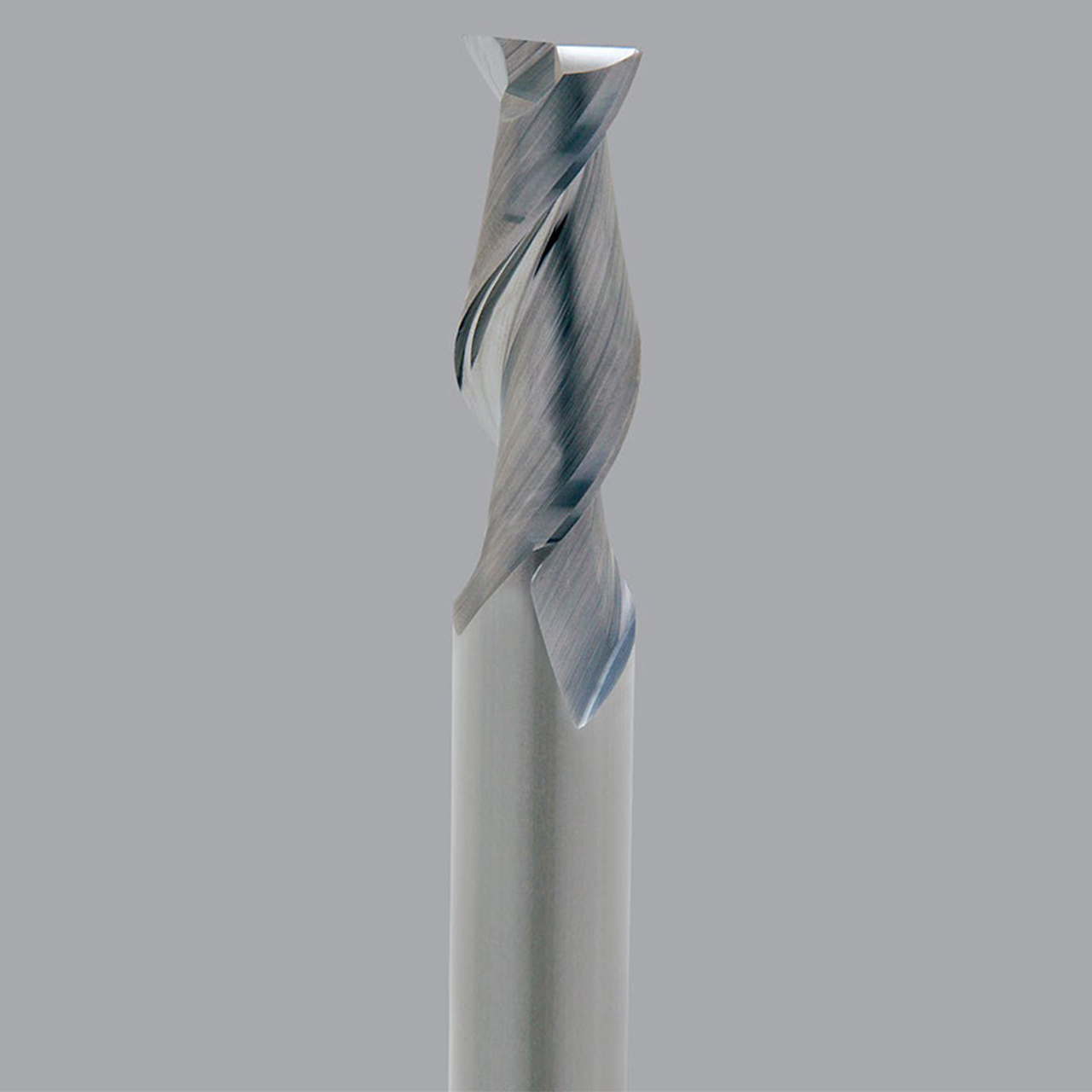

Onsrud AMC701711 | 0.625" Diameter x 0.625" Shank x 2.250" LOC x 5.000" OAL x 0.030" Radius 2 Flute Solid Carbide Corner Radius End Mill

$223.01
Brand:
Onsrud
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Mill Diameter (mm):
15.88mm
Number of Flutes:
2
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Length of Cut (mm):
57.15mm
Material:
Solid Carbide
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127.00mm
SKU:
25263133
Weight:
0.89 LBS
Shipping:
Free Shipping

Product Specifications
Manufacturer Part NumberAMC701711
SeriesAFL-2
Cutting Diameter (Decimal Inch)0.625"
Length of Cut (Decimal Inch)2.250"
Shank Diameter (Decimal Inch)0.625"
Overall Length (Decimal Inch)5.000"
Corner Radius (Decimal Inch)0.030"
Tool MaterialSolid Carbide
Material CutMilling Non-Ferrous

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Onsrud
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Mill Diameter (mm):
15.88mm
Number of Flutes:
2
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Length of Cut (mm):
57.15mm
Material:
Solid Carbide
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127.00mm
