Product Specifications

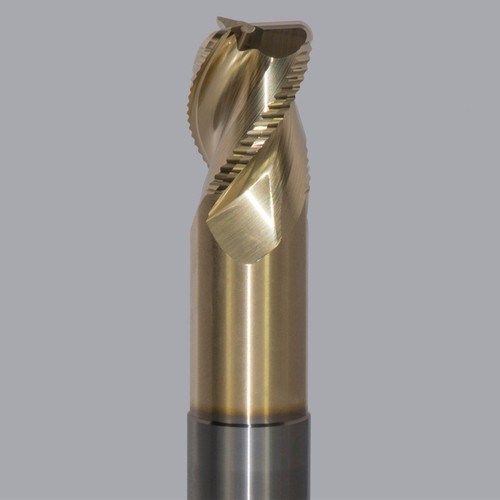

| Manufacturer Part Number | AMC703414 |
| Series | AFS-3 |
| Cutting Diameter (Decimal Inch) | 0.625" |
| Length of Cut (Decimal Inch) | 0.750" |
| Shank Diameter (Decimal Inch) | 0.625" |
| Overall Length (Decimal Inch) | 3.000" |
| Corner Radius (Decimal Inch) | 0.060" |
| Tool Material | Solid Carbide |
| Material Cut | Milling Non-Ferrous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Onsrud
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Mill Diameter (mm):
15.88mm
Number of Flutes:
3
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Material:
Solid Carbide
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
