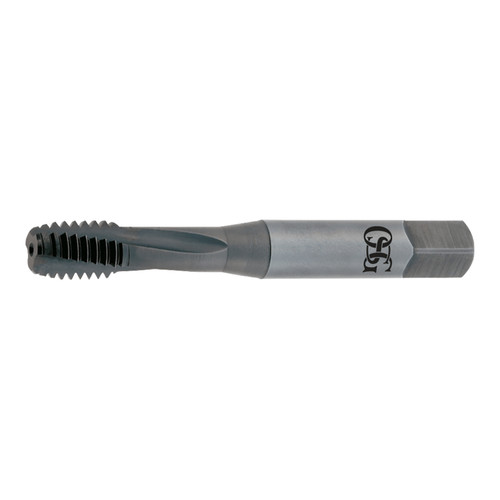

OSG 0141401 | EXOTAP UNF 1/2" - 2 Thread Size x 0.367" Shank x 0.614" Length x 3.375" OAL Bottom (1.5P) Chamfer H5 3 Flute Steam Oxide Coated VC-10 313NI Spiral Flute Tap

OSG 0141401 | EXOTAP UNF 1/2" - 2 Thread Size x 0.367" Shank x 0.614" Length x 3.375" OAL Bottom (1.5P) Chamfer H5 3 Flute Steam Oxide Coated VC-10 313NI Spiral Flute Tap

SKU: 17995573 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$103.77 $96.51
(You save $7.26)
Shipping: Calculated at Checkout

About This Item

EXOTap VC-10 NI is spiral flute series is the premium solution for Nickel alloys and Heat Resistant Super Alloys.

Features & Benefits:

  • Premium Powdered Metal VC-10 Substrate: Increased Hardness for longer life
  • Spiral Flute: For Blind Hole Applications
  • OSG V-Coating: Increased Hardness, Lubricity & Wear Resistance
  • DIN Overall Length: Provides greater Reach Capability
Product Specifications
Manufacturer Part Number0141401
Chamfer Length (Decimal Inch)0.075"
Major Diameter (Decimal Inch)0.500"
Neck Length (Decimal Inch)1.933"
Number of Flutes3
Overall Length (Decimal Inch)3.375"
Shank Diameter (Decimal Inch)0.367"
Square Length (Decimal Inch)0.438"
Square Width (Decimal Inch)0.275"
Maximum Tap Drill Size (Decimal Inch)0.457"
Minimum Tap Drill Size (Decimal Inch)0.446"
Thread Length (Decimal Inch)0.614"
Thread Size (Inch)1/2"
CoatingSteam Oxide
MaterialVC-10
Helix DirectionRight Hand
Helix Angle (Degree)10 Degree
Product TypeSpiral Flute Tap
