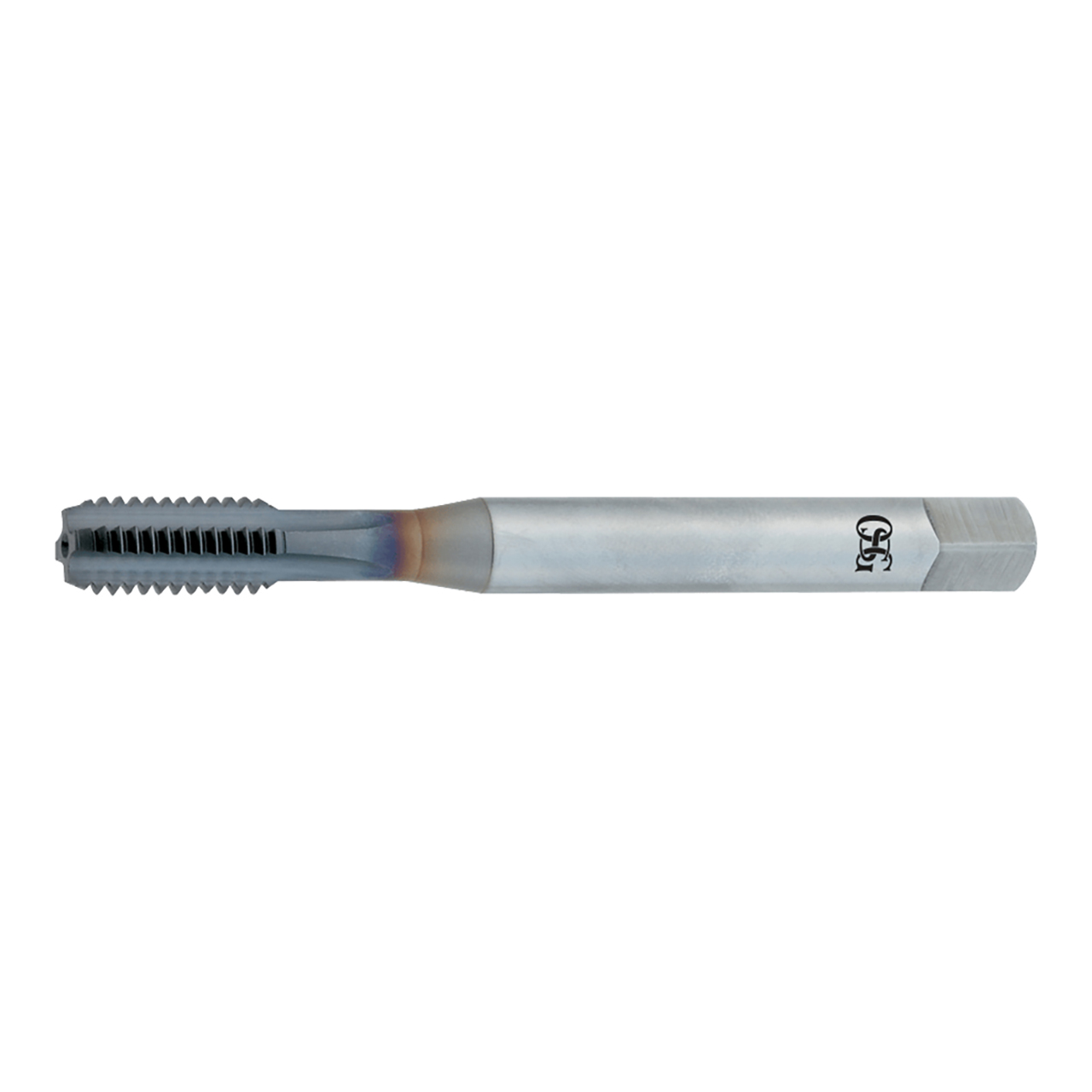

The EXOTAP-DC taps are the industry leading tap for processing threads in Cast Iron, Ductile Iron and Cast Aluminum. The combination of ultra-strong rake withVC10 powdered metal substrate makes this tap the absolute best soltion for threading ductile castings.
Features & Benefits:
- Eccentic thread relief: Reduces friction during cutting, thereby minimizing heat generation and extending life
- Straight flute design: Most rigid cut tap design, suitable for both through and blind holes
- Multi-layered TiCN (V) coating from OSG: The layered configuration resists thermal cracking while increasing surface hardness to extend life up to 3X vs monolayered TiCN
- Available DIN or ANSI oberall lengths, coolant-through or solid, metric and inch, up to 1" or M24: Absolute versatility for any machining operation in Ductile Iron
Product Specifications
| Manufacturer Part Number | 1005303508 |
| Chamfer Length (Decimal Inch) | 0.188" |
| Major Diameter (Decimal Inch) | 1.000" |
| Neck Length (Decimal Inch) | 3.011" |
| Number of Flutes | 5 |
| Overall Length (Decimal Inch) | 6.299" |
| Shank Diameter (Decimal Inch) | 0.800" |
| Square Length (Decimal Inch) | 0.813" |
| Square Width (Decimal Inch) | 0.600" |
| Maximum Tap Drill Size (Decimal Inch) | 0.890" |
| Minimum Tap Drill Size (Decimal Inch) | 0.865" |
| Thread Length (Decimal Inch) | 1.500" |
| Thread Size (Inch) | 1" |
| Coating | V |
| Material | VC-10 |
| Series | 10053 Series |
| Product Type | Straight Flute Tap |
