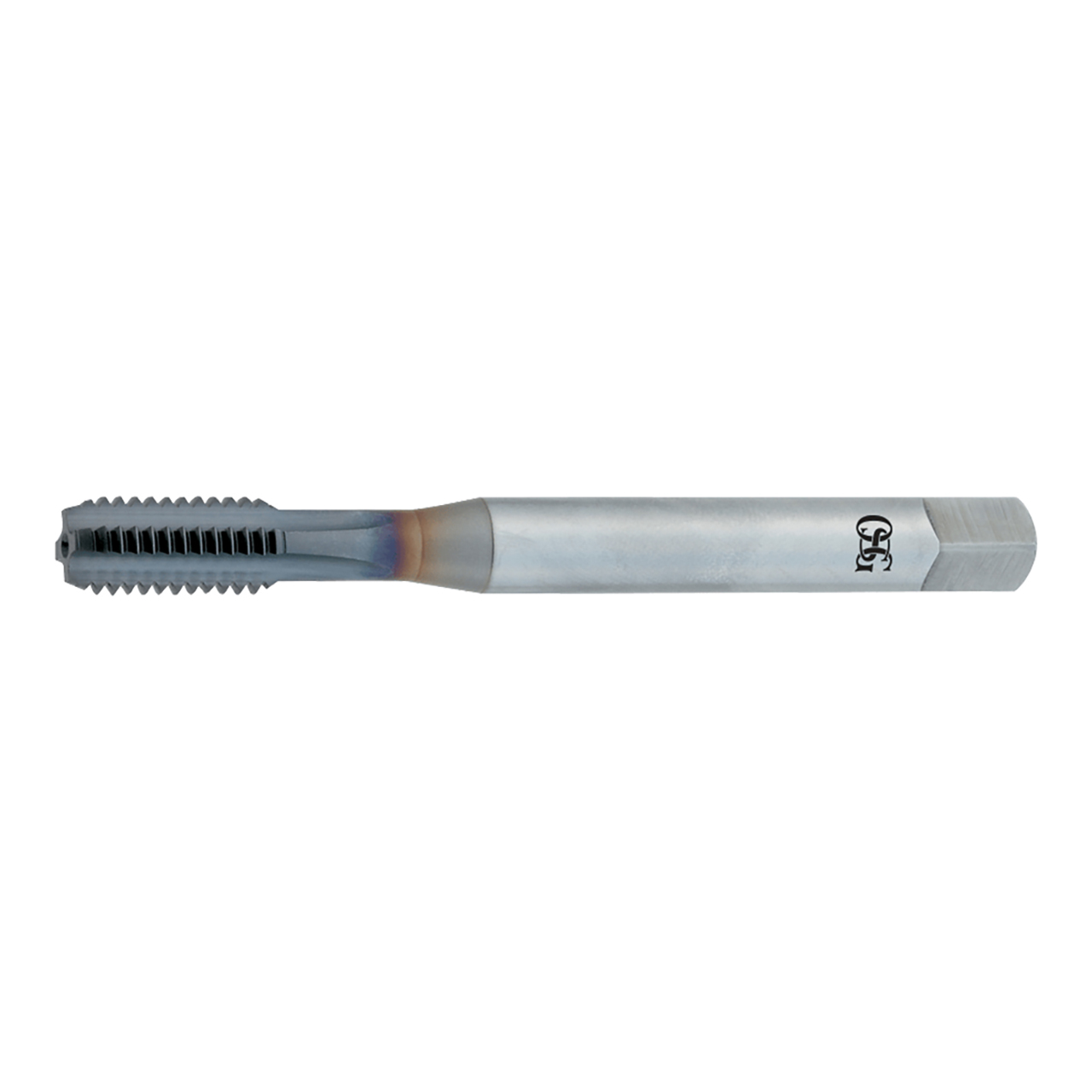

The EXOTAP-DC taps are the industry leading tap for processing threads in Cast Iron, Ductile Iron and Cast Aluminum. The combination of ultra-strong rake with our VC10 powdered metal substrate makes this tap the absolute best soltion for threading ductile castings.
Features & Benefits:
- Eccentic thread relief: Reduces friction during cutting, thereby minimizing heat generation and extending life.
- Straight flute design: Most rigid cut tap design, suitable for both through and blind holes.
- Multi-layered TiCN (V) coating from OSG: The layered configuration resists thermal cracking while increasing surface hardness to extend life up to 3X vs monolayered TiCN.
- Available DIN or ANSI oberall lengths, coolant-through or solid, metric and inch, up to 1" or M24.: Absolute versatility for any machining operation in Ductile Iron.
Product Specifications
| Manufacturer Part Number | 1005602508 |
| Chamfer Length (Decimal Inch) | 0.083" |
| Chamfer Type | Bottom (1.5P) |
| Cutting Direction | Right Hand |
| List Name | DC VP-DC-HT |
| Major Diameter (Decimal Inch) | 0.625" |
| Neck Length (Decimal Inch) | 2.125" |
| Number of Flutes | 5 |
| Overall Length (Decimal Inch) | 3.810" |
| Shank Diameter (Decimal Inch) | 0.480" |
| Square Length (Decimal Inch) | 0.563" |
| Square Width (Decimal Inch) | 0.360" |
| Material | VC-10 |
| Coating | V |
| Tap Drill Size Maximum (Decimal Inch) | 0.578" |
| Tap Drill Size Minimum (Decimal Inch) | 0.565" |
| Thread Length (Decimal Inch) | 1.090 " |
| Thread Limit | H5 |
| Thread Size (Inch) | 5/8" |
| Thread Type | UNF |
| Thread Per Inch (TPI) | 18 TPI |
| Series | 10056 |
| Product Type | Straight Flute Tap |
