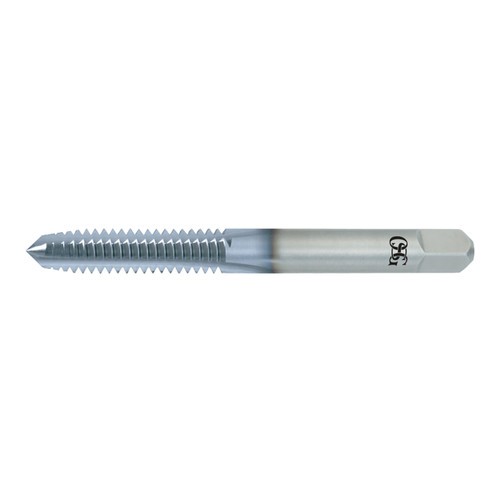

EXOCARB Taps Carbide Taps for Cast Iron & Aluminum.
| Manufacturer Part Number | 1006100300 |
| Chamfer Length (Decimal Inch) | 0.124" |
| Chamfer Type | Plug (4.5P) |
| Cutting Direction | Right Hand |
| List Name | CHT |
| Major Diameter (mm) | 4.00mm |
| Neck Length (mm) | 19.10mm |
| Number of Flutes | 4 |
| Overall Length (mm) | 54.00mm |
| Pitch (mm) | 0.70mm |
| Shank Diameter (mm) | 4.27mm |
| Square Length (Decimal Inch) | 6.400" |
| Square Length (mm) | 6.35mm |
| Square Width (Decimal Inch) | 3.330" |
| Square Width (mm) | 3.33mm |
| Material | Carbide |
| Coating | Bright |
| Tap Drill Size Maximum (mm) | 3.42mm |
| Tap Drill Size Minimum (mm) | 3.24mm |
| Thread Length (mm) | 8.40mm |
| Thread Limit | D4 |
| Thread Size | M4 |
| Thread Type | M |
| Series | 10061 |
| Product Type | Straight Flute Tap |
