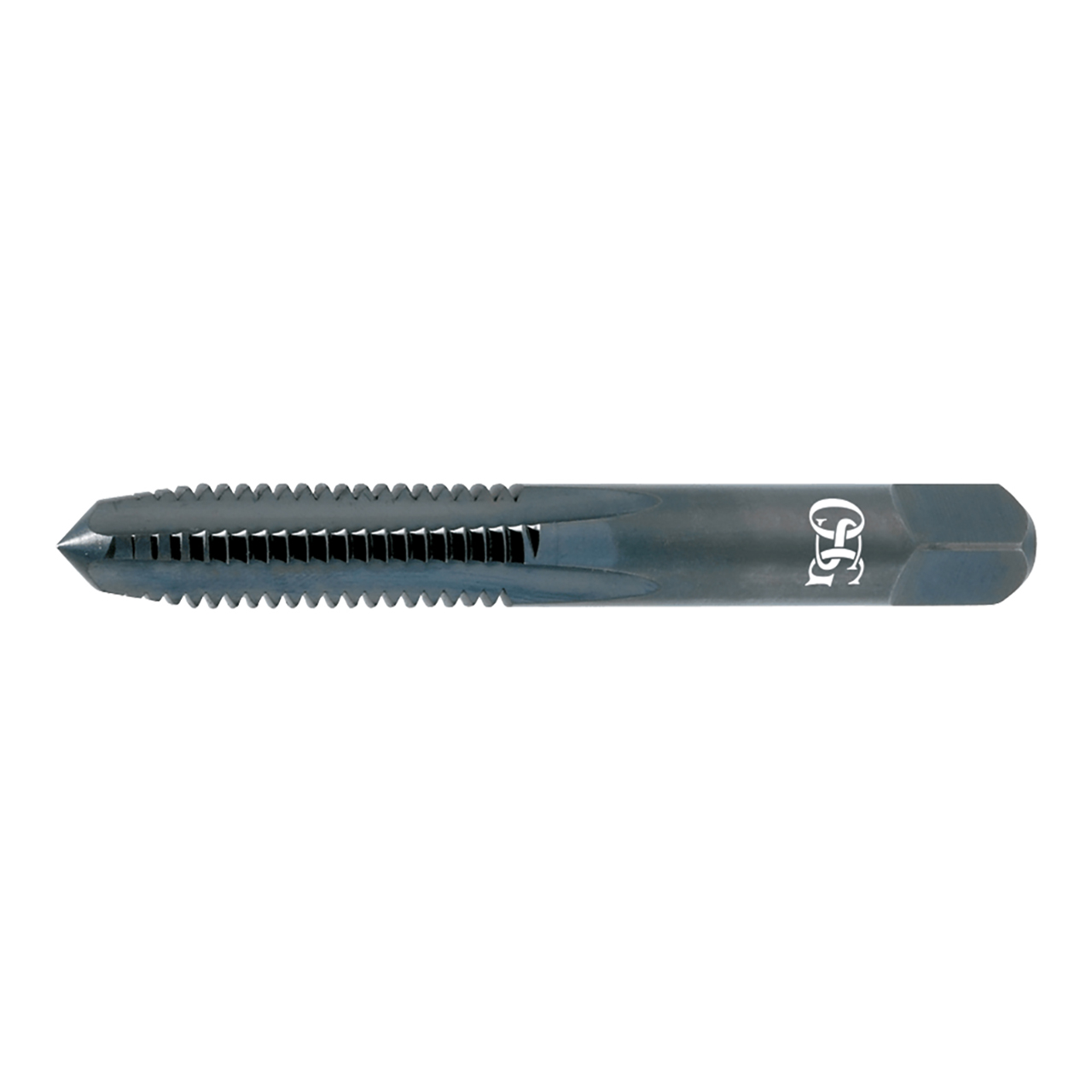

OSG 1009400 | 1/2" - 13 Thread Size x 0.367" Shank x 1.154" Thread Length x 3.374" OAL x 2B +0.005" Class of Fit UNC Bottom (1.5P) Chamfer Type 4 Flute Right Hand Bright Coated HSS 101H Straight Flute Tap

$42.22 $19.00
(You save $23.22)
Brand:
OSG
Overall Length (Decimal Inch):
3.3740"
Number of Flutes:
4
Material:
HSS
Finish/Coating:
Bright
interval quantity:
1
SKU:
15029238
UPC:
Weight:
0.11 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1009400 | 1/2" - 13 Thread Size x 0.367" Shank x 1.154" Thread Length x 3.374" OAL x 2B +0.005" Class of Fit UNC Bottom (1.5P) Chamfer Type 4 Flute Right Hand Bright Coated HSS 101H Straight Flute Tap

General Purpose straight flute tap series that provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Straight Flute: For blind and through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiN, TiCN surface treatments: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1009400
Chamfer Length (Decimal Inch)0.115"
Major Diameter (Decimal Inch)0.500"
Neck Length (Decimal Inch)1.811"
Number of Flutes4
Overall Length (Decimal Inch)3.374"
Shank Diameter (Decimal Inch)0.367"
Square Length (Decimal Inch)0.438"
Square Width (Decimal Inch)0.275"
Maximum Tap Drill Size (Decimal Inch)0.434"
Minimum Tap Drill Size (Decimal Inch)0.417"
Thread Length (Decimal Inch)1.154"
Thread Size (Inch)1/2"
CoatingBright
MaterialHSS
Series101H Series
Product TypeStraight Flute Tap
