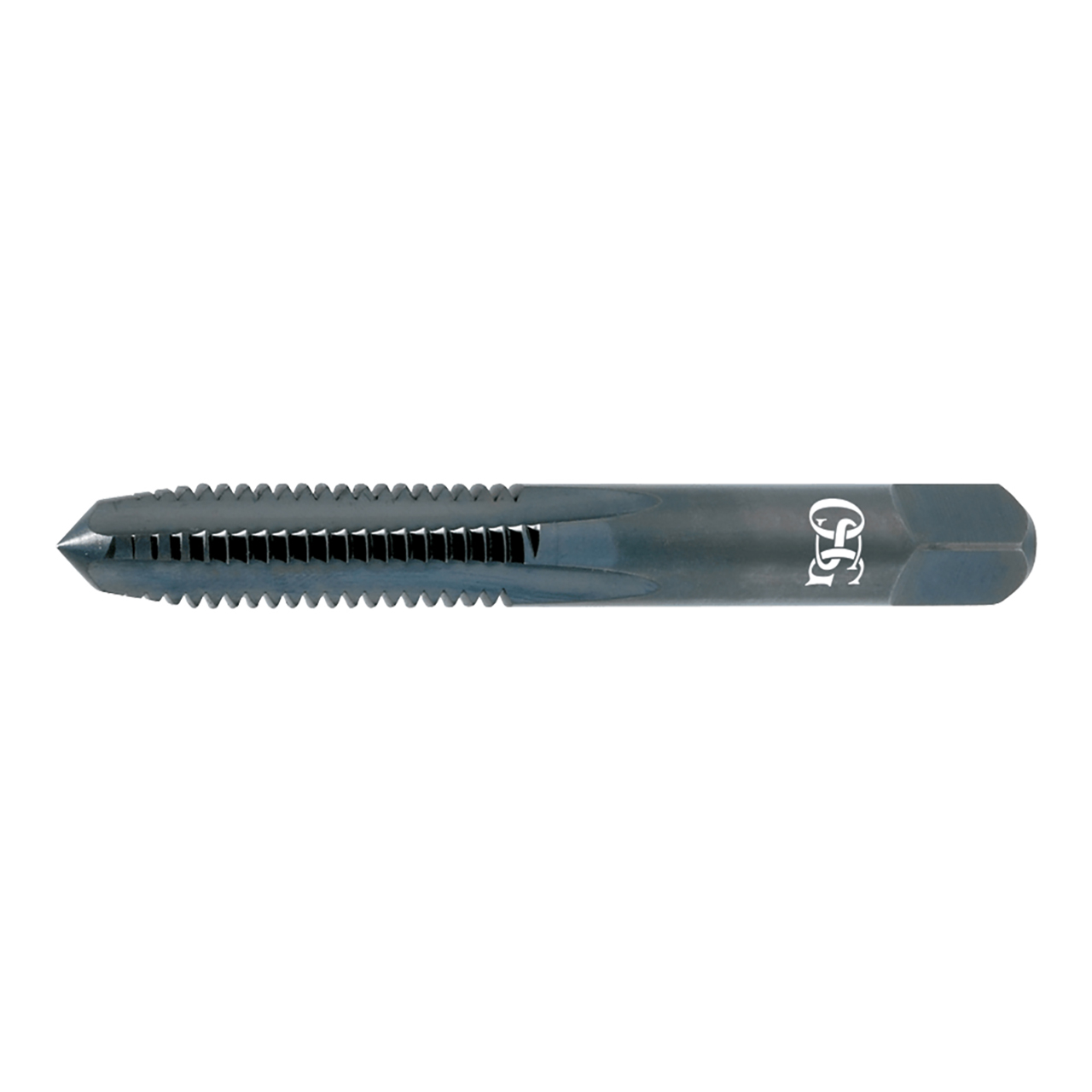

General Purpose straight flute tap series that provides exceptional value for all general threading applications.
Features & Benefits:
| Manufacturer Part Number | 1010105 |
| Chamfer Length (Decimal Inch) | 0.050" |
| Chamfer Type | Plug (4P) |
| Cutting Direction | Right Hand |
| List Name | GENERAL PURPOSE-HT |
| Major Diameter (Decimal Inch) | 0.060" |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 1.626" |
| Shank Diameter (Decimal Inch) | 0.141" |
| Square Length (Decimal Inch) | 0.188" |
| Square Width (Decimal Inch) | 0.110" |
| Material | HSS |
| Coating | TiN |
| Tap Drill Size Maximum (Decimal Inch) | 0.051" |
| Tap Drill Size Minimum (Decimal Inch) | 0.047" |
| Thread Length (Decimal Inch) | 0.311" |
| Thread Limit | H2 |
| Thread Type | UNF |
| Thread Per Inch (TPI) | 80 TPI |
| Series | 102 |
| Product Type | Straight Flute Tap |
