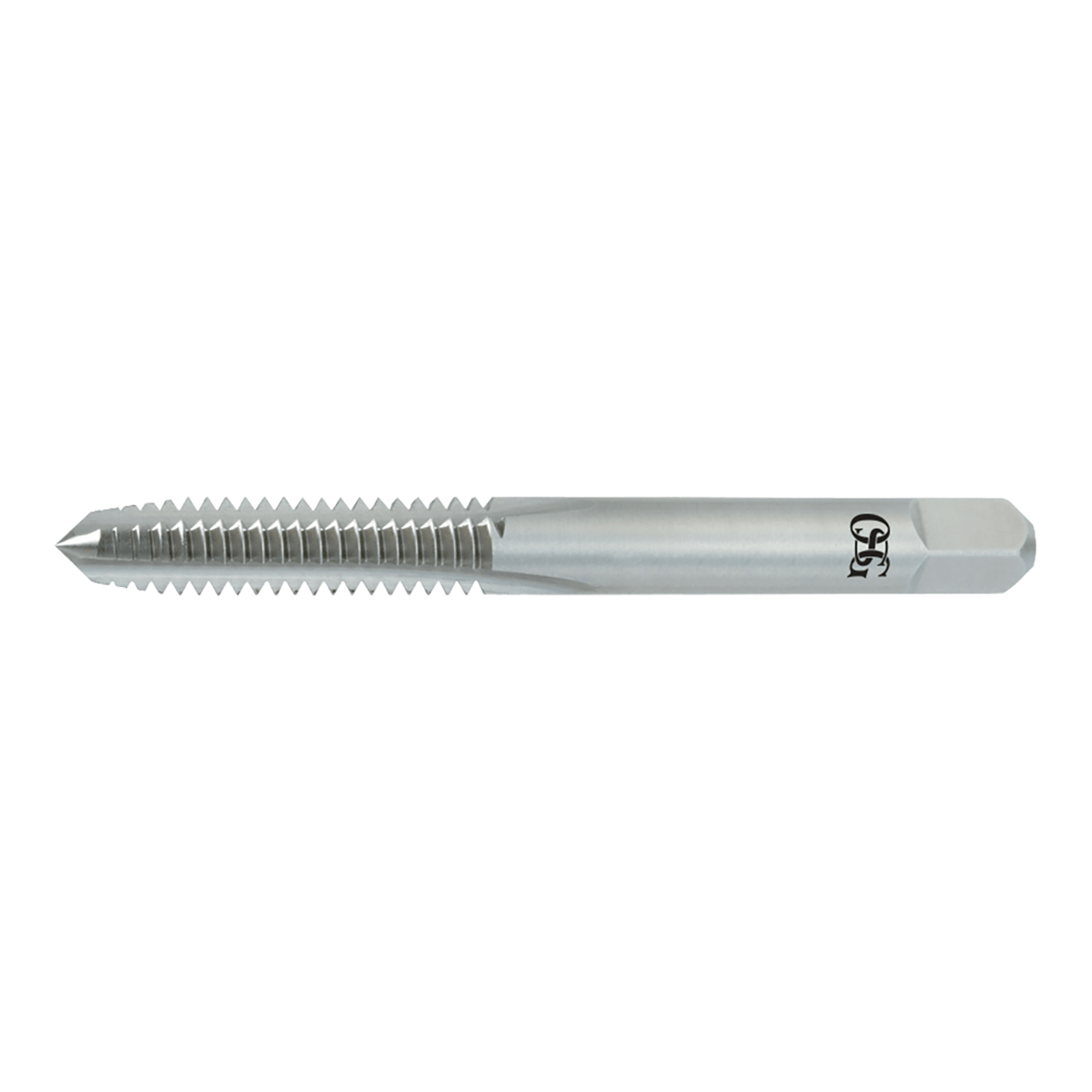

General Purpose straight flute tap series that provides exceptional value for all general threading applications.
Features & Benefits:
| Manufacturer Part Number | 1045200 |
| Chamfer Length (Decimal Inch) | 0.047" |
| Chamfer Type | Bottom (1.5P) |
| Cutting Direction | Right Hand |
| List Name | GENERAL PURPOSE-HT |
| Major Diameter (Decimal Inch) | 0.164" |
| Neck Length (Decimal Inch) | 0.933" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.126" |
| Shank Diameter (Decimal Inch) | 0.168" |
| Square Length (Decimal Inch) | 0.250" |
| Square Width (Decimal Inch) | 0.131" |
| Material | HSS |
| Coating | Bright |
| Tap Drill Size Maximum (Decimal Inch) | 0.139" |
| Tap Drill Size Minimum (Decimal Inch) | 0.130" |
| Thread Length (Decimal Inch) | 0.469" |
| Thread Limit | H2 |
| Thread Size | No. 8 |
| Thread Size (Number) | #8 |
| Thread Type | UNC |
| Thread Per Inch (TPI) | 32 TPI |
| Series | 103 |
| Product Type | Straight Flute Tap |
