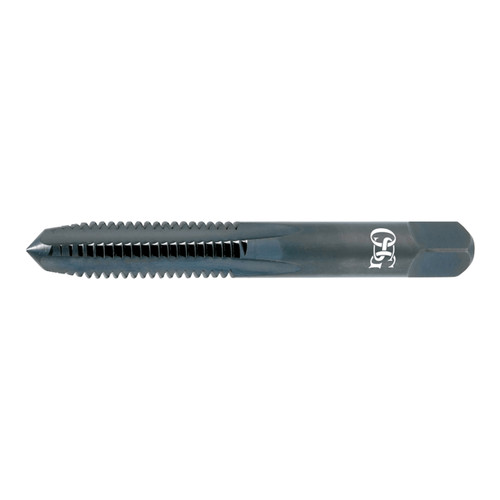

General Purpose straight flute tap series that provides exceptional value for all general threading applications.
Features & Benefits:
- HSS material: Increased wear resistance
- Straight Flute: For blind and through hole applications
- Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
- TiN, TiCN surface treatments: Improves wear resistance for extended tap life
Product Specifications
| Manufacturer Part Number | 1102900 |
| Chamfer Length (Decimal Inch) | 0.075" |
| Chamfer Type | Bottom (1.5P) |
| Cutting Direction | Right Hand |
| List Name | GENERAL PURPOSE-HT |
| Major Diameter (Decimal Inch) | 0.500" |
| Neck Length (Decimal Inch) | 1.811" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 3.374" |
| Shank Diameter (Decimal Inch) | 0.367" |
| Square Length (Decimal Inch) | 0.438" |
| Square Width (Decimal Inch) | 0.275" |
| Material | HSS |
| Coating | Bright |
| Tap Drill Size Maximum (Decimal Inch) | 0.457" |
| Tap Drill Size Minimum (Decimal Inch) | 0.446" |
| Thread Length (Decimal Inch) | 1.154" |
| Thread Limit | H1 |
| Thread Size (Inch) | 1/2" |
| Thread Type | UNF |
| Thread Per Inch (TPI) | 20 TPI |
| Series | 101 |
| Product Type | Straight Flute Tap |
