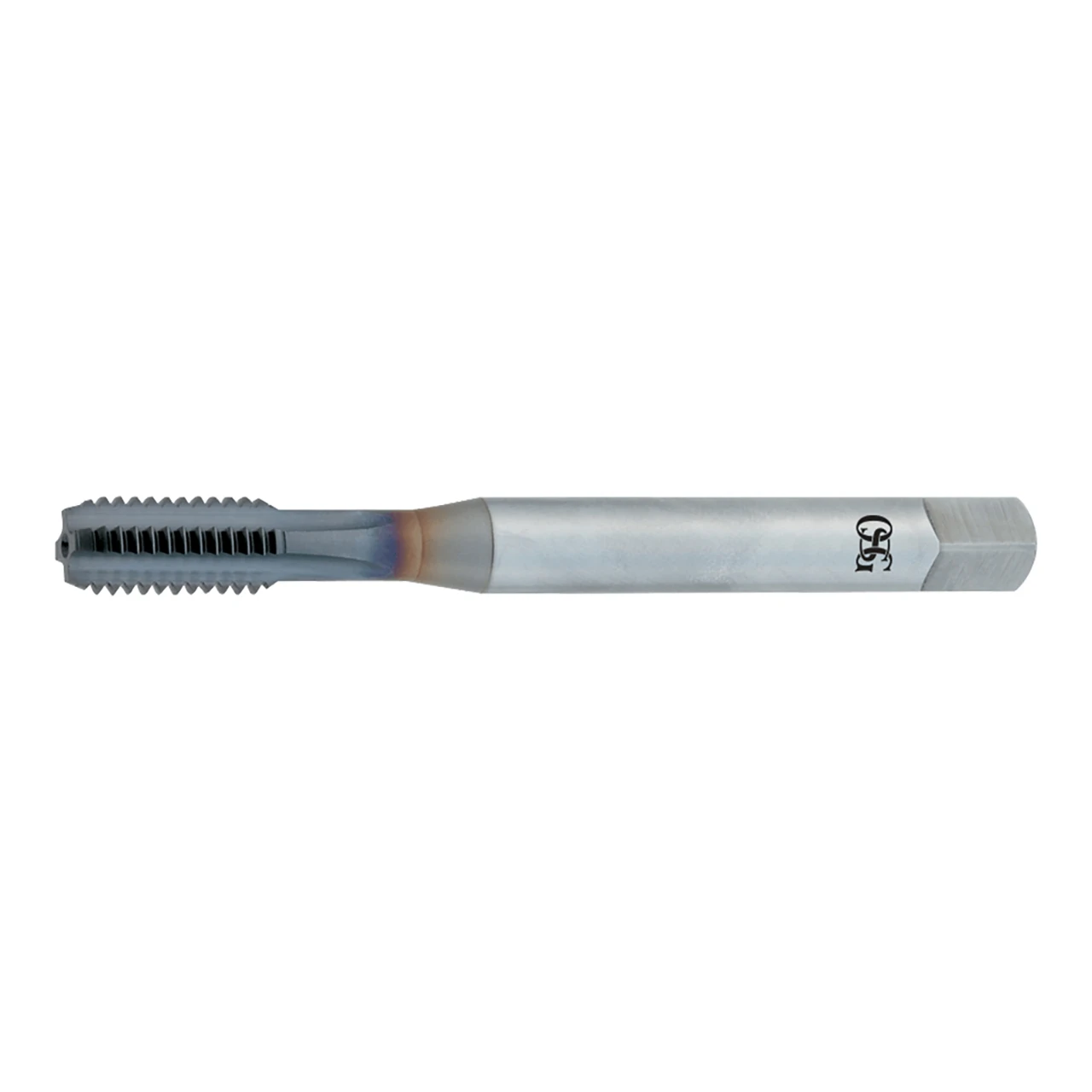

OSG 1105200808 | EXOTAP M M12.00x1.75mm Thread Size x 9.32mm Shank x 21.00mm Length x 11.00mm OAL Bottom (1.5P) Chamfer D6 4 Flute V Coated VC-10 11052 Straight Flute Tap

The EXOTAP-DC taps are the industry leading tap for processing threads in Cast Iron, Ductile Iron and Cast Aluminum. The combination of ultra-strong rake with our VC10 powdered metal substrate makes this tap the absolute best soltion for threading ductile castings.

Features & Benefits:

• Eccentic thread relief: Reduces friction during cutting, thereby minimizing heat generation and extending life.
• Straight flute design: Most rigid cut tap design, suitable for both through and blind holes.
• Multi-layered TiCN (V) coating from OSG: The layered configuration resists thermal cracking while increasing surface hardness to extend life up to 3X vs monolayered TiCN.
• Available DIN or ANSI overall lengths, coolant-through or solid, metric and inch, up to 1" or M24.: Absolute versatility for any machining operation in Ductile Iron.
