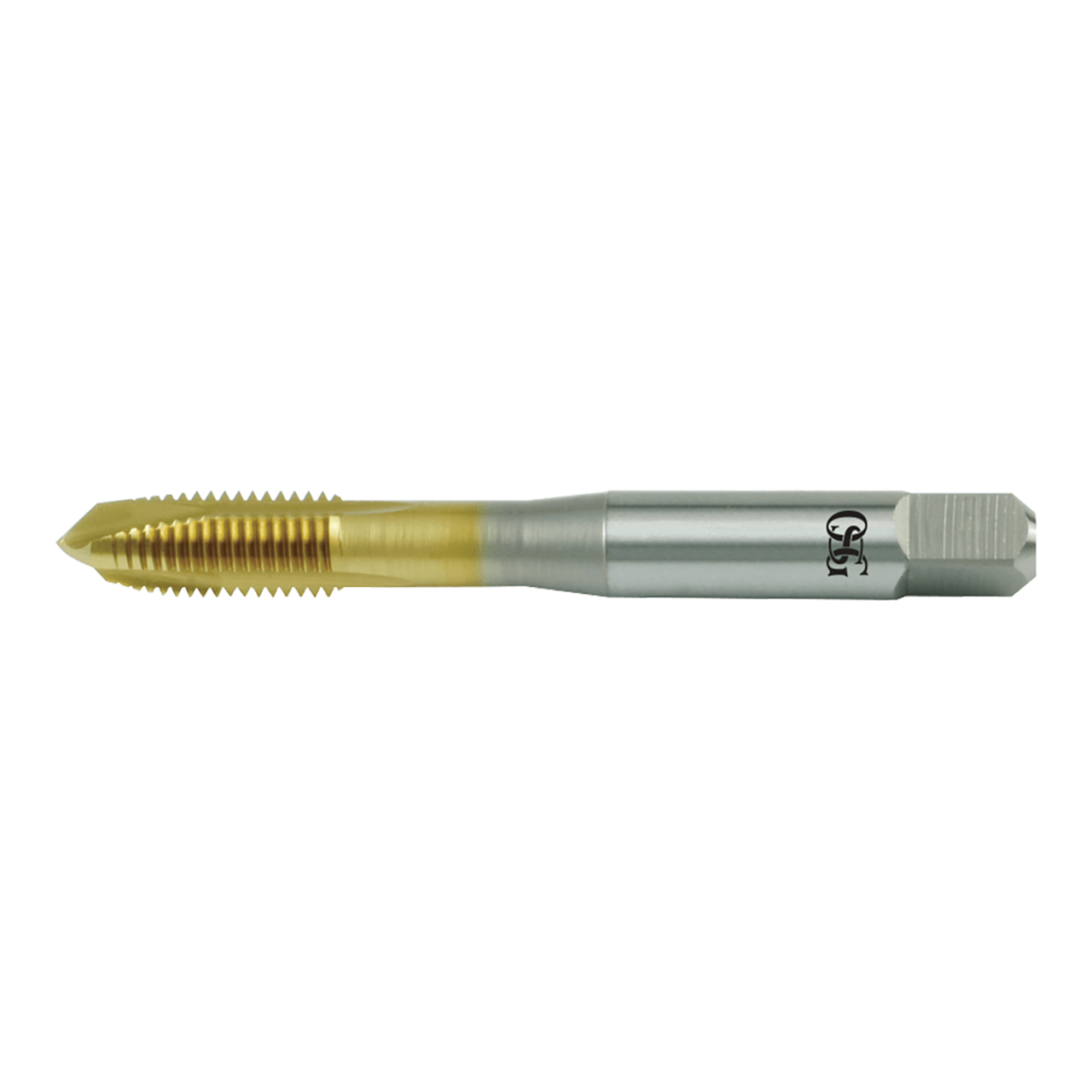

OSG 1111506305 | HY-PRO M12 x 1.25mm Thread Size x 9.32mm Shank x 19.10mm Thread Length MF H11 Plug (4.5P) Chamfer Type 3 Flute Right Hand TiN Coated HSS-CO 11115 Spiral Point Tap

$56.24 $34.31
(You save $21.93)
Brand:
OSG
Number of Flutes:
3
Material:
HSS-CO
Finish/Coating:
TiN
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
17996492
UPC:
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1111506305 | HY-PRO M12 x 1.25mm Thread Size x 9.32mm Shank x 19.10mm Thread Length MF H11 Plug (4.5P) Chamfer Type 3 Flute Right Hand TiN Coated HSS-CO 11115 Spiral Point Tap

HY-PRO AERO-F is the premium spiral point tap designed specifically for threading Aerospace threaded fasteners.

Features & Benefits:

  • Cobalt HSS material: Increased wear resistance
  • Spiral Point: For through hole applications
  • TiN Coating: Improves wear resistance for extended tap life
  • DIN Overall Length: Provides additional reach capability

Product Specifications
Manufacturer Part Number1111506305
Chamfer Length (Decimal Inch)0.221"
Major Diameter (mm)12.00mm
Neck Length (mm)35.00mm
Number of Flutes3
Overall Length (mm)85.70mm
Pitch (mm)1.25mm
Shank Diameter (mm)9.32mm
Square Length (mm)11.11mm
Square Width (mm)6.99mm
Maximum Tap Drill Size (mm)10.91mm
Minimum Tap Drill Size (mm)10.65mm
Thread Length (mm)19.10mm
Thread SizeM12
CoatingTiN
MaterialHSS-CO
Series11115 Series
Product TypeSpiral Point Tap
