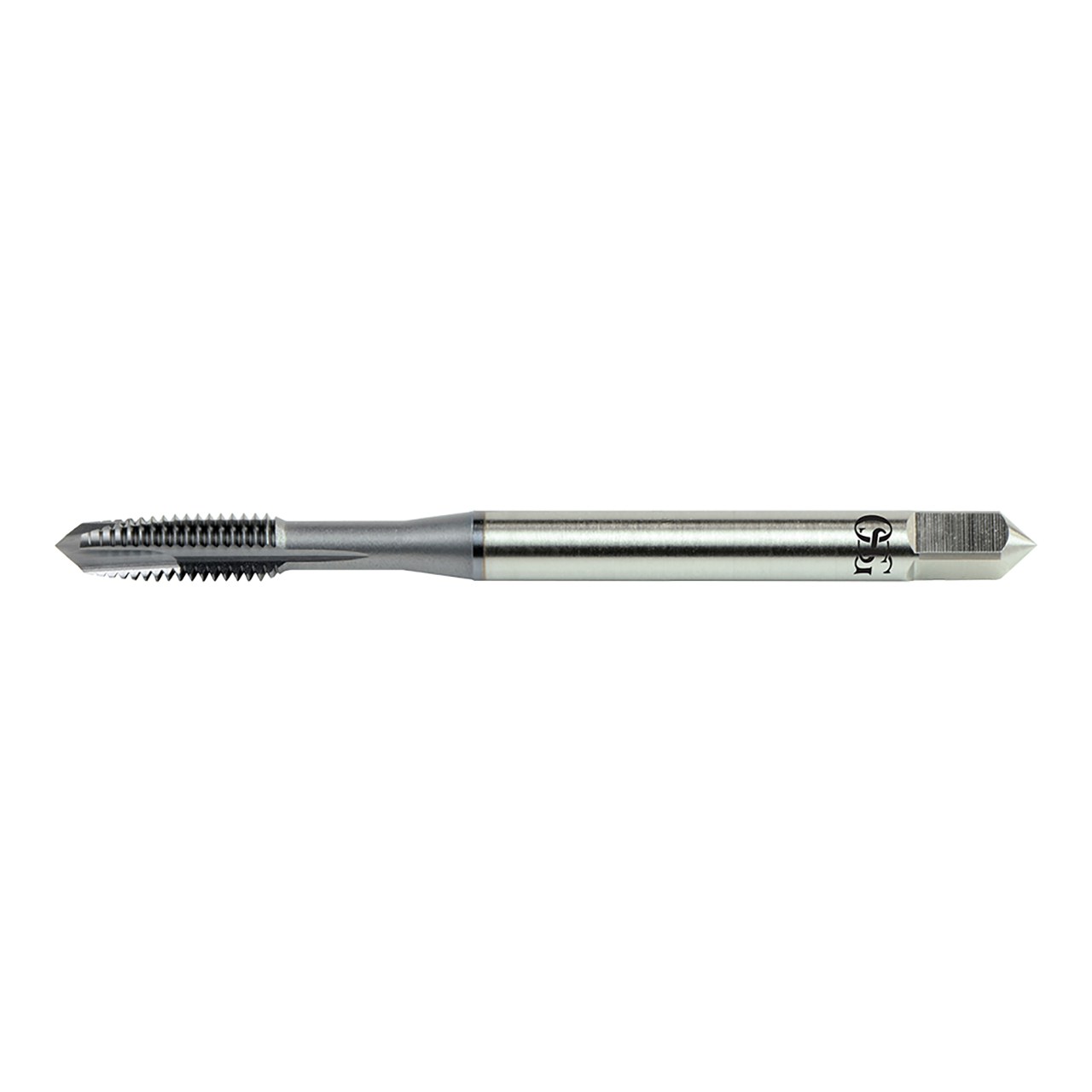

OSG 1111601103 | HY-PRO TAP MF M12.00x1.25mm Thread Size x 9.32mm Shank x 21.00mm Length x 10.00mm OAL Plug (4P) Chamfer D5 3 Flute Nitride Coated HSSE 11116 Spiral Point Tap

OSG 1111601103 | HY-PRO TAP MF M12.00x1.25mm Thread Size x 9.32mm Shank x 21.00mm Length x 10.00mm OAL Plug (4P) Chamfer D5 3 Flute Nitride Coated HSSE 11116 Spiral Point Tap

SKU: 17996525 Weight: 0.13 LBS Minimum Purchase: 1 unit
UPC:
$63.37 $38.66
(You save $24.71)
Shipping: Calculated at Checkout

About This Item

HY-PRO AL DIN is a premium spiral point tap designed for Alloy and Cast Aluminums.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Nitride surface treatment: Extra surface hardness for longer life
  • DIN Overall Length: Provides additional reach capability

Product Specifications
Manufacturer Part Number1111601103
Chamfer Length (Decimal Inch)0.197"
Chamfer TypePlug (4P)
Cutting DirectionRight Hand
List NameAL-DIN-POT
Major Diameter (mm)12.00mm
Neck Length (mm)32.00mm
Number of Flutes3
Overall Length (mm)100.00mm
Pitch (mm)1.25mm
Shank Diameter (mm)9.32mm
Square Length (mm)11.11mm
Square Width (mm)6.99mm
MaterialHSSE
CoatingNitride
Tap Drill Size Maximum (mm)10.91mm
Tap Drill Size Minimum (mm)10.65mm
Thread Length (mm)21.00mm
Thread LimitD5
Thread SizeM12
Thread TypeMF
Series11116
Product TypeSpiral Point Tap
