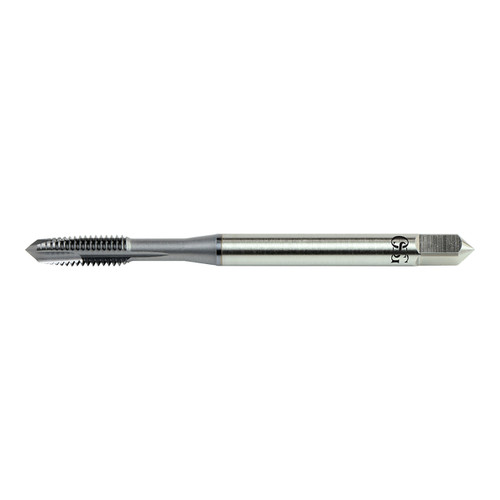

OSG 1111701308 | HY-PRO TAP M M12.00x1.75mm Thread Size x 9.32mm Shank x 21.90mm Length x 10.00mm OAL Plug (4P) Chamfer D6 3 Flute V Coated HSSE 11117 Spiral Point Tap

OSG 1111701308 | HY-PRO TAP M M12.00x1.75mm Thread Size x 9.32mm Shank x 21.90mm Length x 10.00mm OAL Plug (4P) Chamfer D6 3 Flute V Coated HSSE 11117 Spiral Point Tap

SKU: 17996535 Weight: 0.14 LBS Minimum Purchase: 1 unit
UPC:
$77.06 $47.00
(You save $30.06)
Shipping: Calculated at Checkout

About This Item

HY-PRO V DIN is the premium solution for unsurpassed performance in difficult to machine materials. This premium spiral point tap is made from vanadium high speed steel.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides additional reach capability

Product Specifications
Manufacturer Part Number1111701308
Chamfer Length (Decimal Inch)0.276"
Major Diameter (mm)12.00mm
Neck Length (mm)32.00mm
Number of Flutes3
Overall Length (mm)100.00mm
Pitch (mm)1.75mm
Shank Diameter (mm)9.32mm
Square Length (mm)11.11mm
Square Width (mm)6.99mm
Maximum Tap Drill Size (mm)10.44mm
Minimum Tap Drill Size (mm)10.11mm
Thread Length (mm)21.90mm
Thread SizeM12
CoatingV
MaterialHSSE
Series11117 Series
Product TypeSpiral Point Tap
