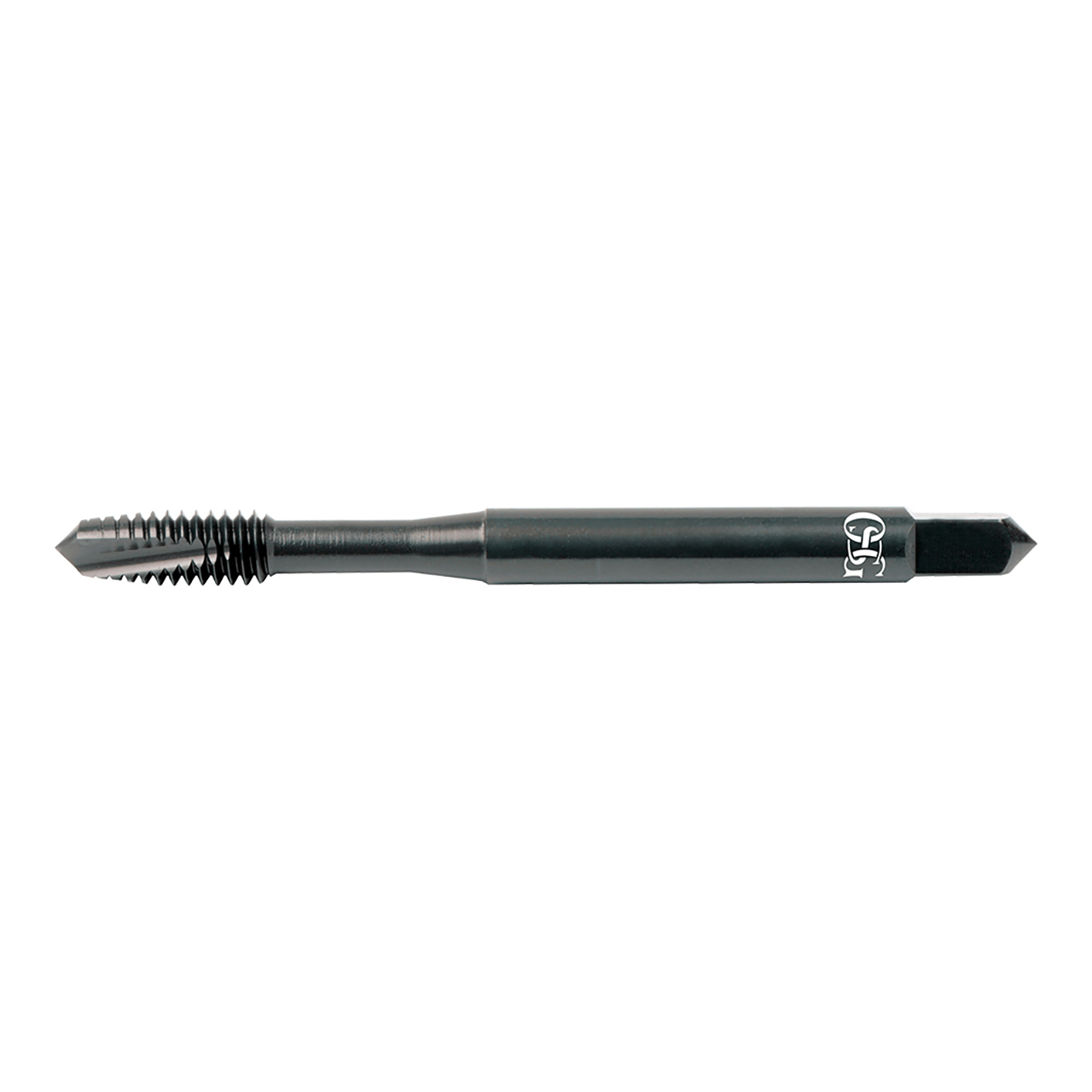

OSG 1111800701 | M M6.00x1.00mm Thread Size x 6.48mm Shank x 16.30mm Length x 152.40mm OAL Plug (4P) Chamfer D5 2 Flute Steam Oxide Coated HSS 11118 Spiral Flute Tap

$87.73 $39.48
(You save $48.25)
Brand:
OSG
Thread Size:
M6
Chamfer:
Plug (4P)
Thread Limit:
D5
Class of Fit:
4H, 6H
Number of Flutes:
2
Finish/Coating:
Steam Oxide
Flute Direction:
Right Hand
Material:
HSS
interval quantity:
1
SKU:
17996541
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1111800701 | M M6.00x1.00mm Thread Size x 6.48mm Shank x 16.30mm Length x 152.40mm OAL Plug (4P) Chamfer D5 2 Flute Steam Oxide Coated HSS 11118 Spiral Flute Tap

General Purpose spiral point tap provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • Long Shank: Provides additional reach capability

Product Specifications
Manufacturer Part Number1111800701
Chamfer Length (Decimal Inch)0.157"
Major Diameter (mm)6.00mm
Neck Length (mm)26.00mm
Number of Flutes2
Overall Length (mm)152.40mm
Pitch (mm)1.00mm
Shank Diameter (mm)6.48mm
Square Length (mm)7.94mm
Square Width (mm)4.85mm
Maximum Tap Drill Size (mm)5.15mm
Minimum Tap Drill Size (mm)4.92mm
Thread Length (mm)16.30mm
Thread SizeM6
CoatingSteam Oxide
MaterialHSS
Series11118 Series
Product TypeSpiral Flute Tap
