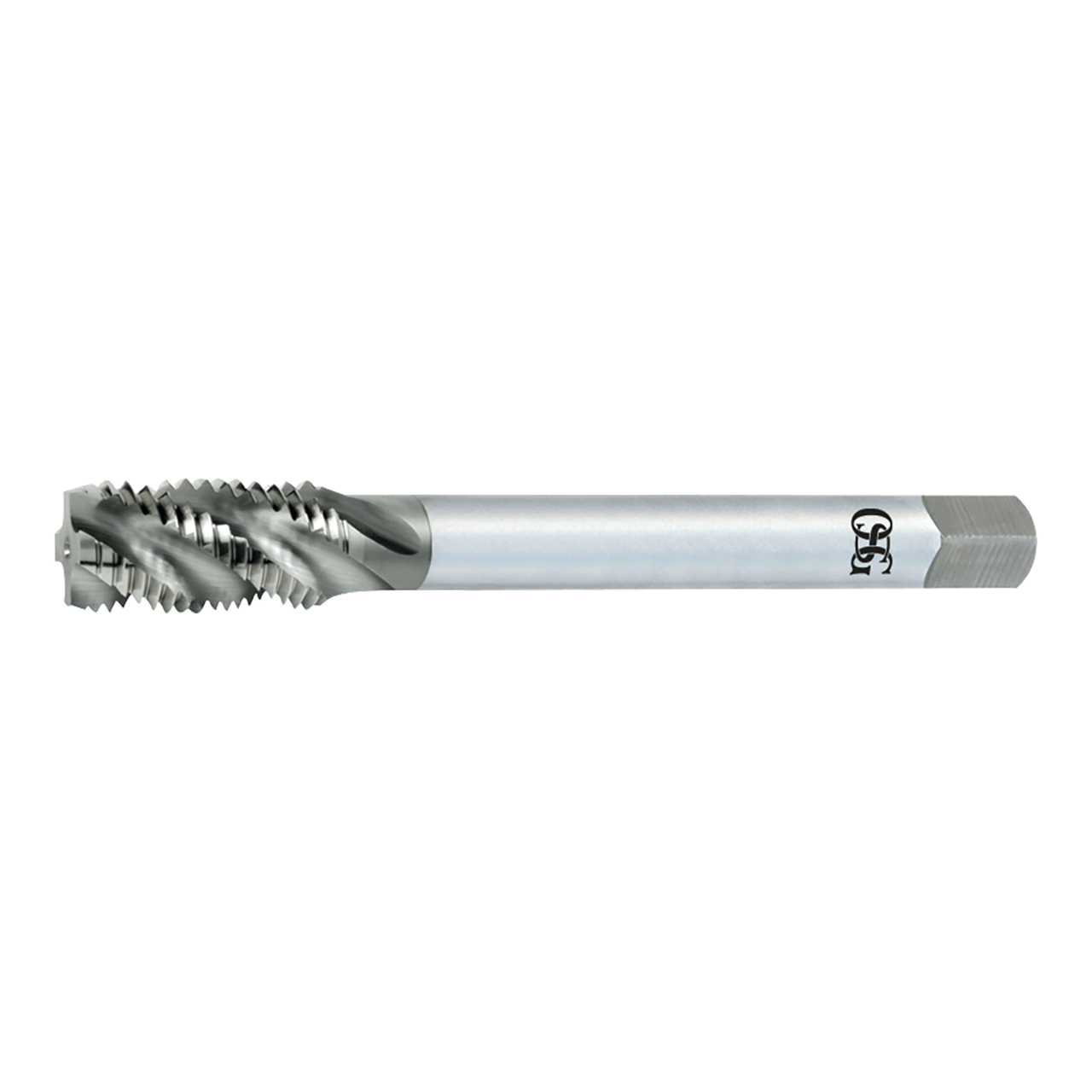

OSG 11680 | M M14.00x2.00mm Thread Size x 10.50mm Shank x 3.00mm Length x 88.00mm OAL Modified Bottom (2.5P) Chamfer OH2 3 Flute BRIGHT Coated HSSE 123 Spiral Flute Tap

OSG 11680 | M M14.00x2.00mm Thread Size x 10.50mm Shank x 3.00mm Length x 88.00mm OAL Modified Bottom (2.5P) Chamfer OH2 3 Flute BRIGHT Coated HSSE 123 Spiral Flute Tap

SKU: 17996815 Weight: 0.14 LBS Minimum Purchase: 1 unit
UPC:
$72.09 $32.44
(You save $39.65)
Shipping: Calculated at Checkout

About This Item

General purpose premium spiral flute taps for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Slow spiral: Efficient chip evacuation
  • JIS Dimensions: Requires JIS Standard tap holder

Product Specifications
Manufacturer Part Number11680
Chamfer Length (Decimal Inch)0.197"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)50 Degree
Helix DirectionRight Hand
List NameGENERAL PURPOSE EX-SFT
Major Diameter (mm)14.00mm
Neck Length (mm)48.00mm
Number of Flutes3
Overall Length (mm)88.00mm
Pitch (mm)2.00mm
Shank Diameter (mm)10.50mm
Square Length (mm)11.00mm
Square Width (mm)8.00mm
MaterialHSSE
CoatingBright
Tap Drill Size Maximum (mm)12.21mm
Tap Drill Size Minimum (mm)11.84mm
Thread Length (mm)30.00mm
Thread LimitOH2
Thread SizeM14
Thread TypeM
Series123
Product TypeSpiral Flute Tap
