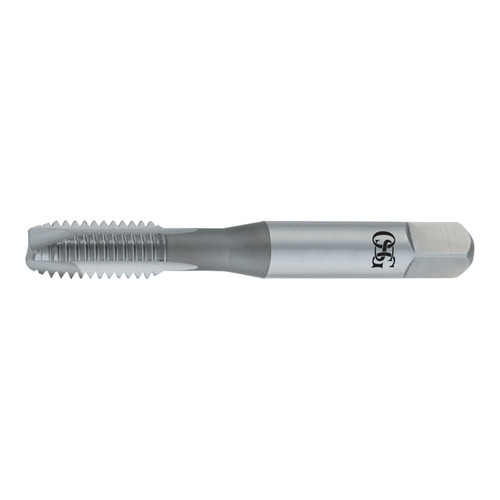

General Purpose spiral point tap series that provides exceptional value for all general threading applications.
Features & Benefits:
- HSS material: Increased wear resistance
- Spiral Point: For through hole applications
- Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
- TiCN coating: Improves wear resistance for extended tap life
Product Specifications
| Manufacturer Part Number | 1232200 |
| Chamfer Length (Decimal Inch) | 0.200" |
| Chamfer Type | Plug (4P) |
| Cutting Direction | Right Hand |
| List Name | GENERAL PURPOSE-POT |
| Major Diameter (Decimal Inch) | 0.438" |
| Neck Length (Decimal Inch) | 1.315" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 3.156" |
| Shank Diameter (Decimal Inch) | 0.323" |
| Square Length (Decimal Inch) | 0.406" |
| Square Width (Decimal Inch) | 0.242" |
| Material | HSS |
| Coating | Bright |
| Tap Drill Size Maximum (Decimal Inch) | 0.395" |
| Tap Drill Size Minimum (Decimal Inch) | 0.383" |
| Thread Length (Decimal Inch) | 0.882" |
| Thread Limit | H3 |
| Thread Size (Inch) | 7/16" |
| Thread Type | UNF |
| Thread Per Inch (TPI) | 20 TPI |
| Series | 105 |
| Product Type | Spiral Point Tap |
